Abound SR Ebike

Compact cargo bike with added security features.

Abound SR Ebike

Compact cargo bike with added security features.
Aventon

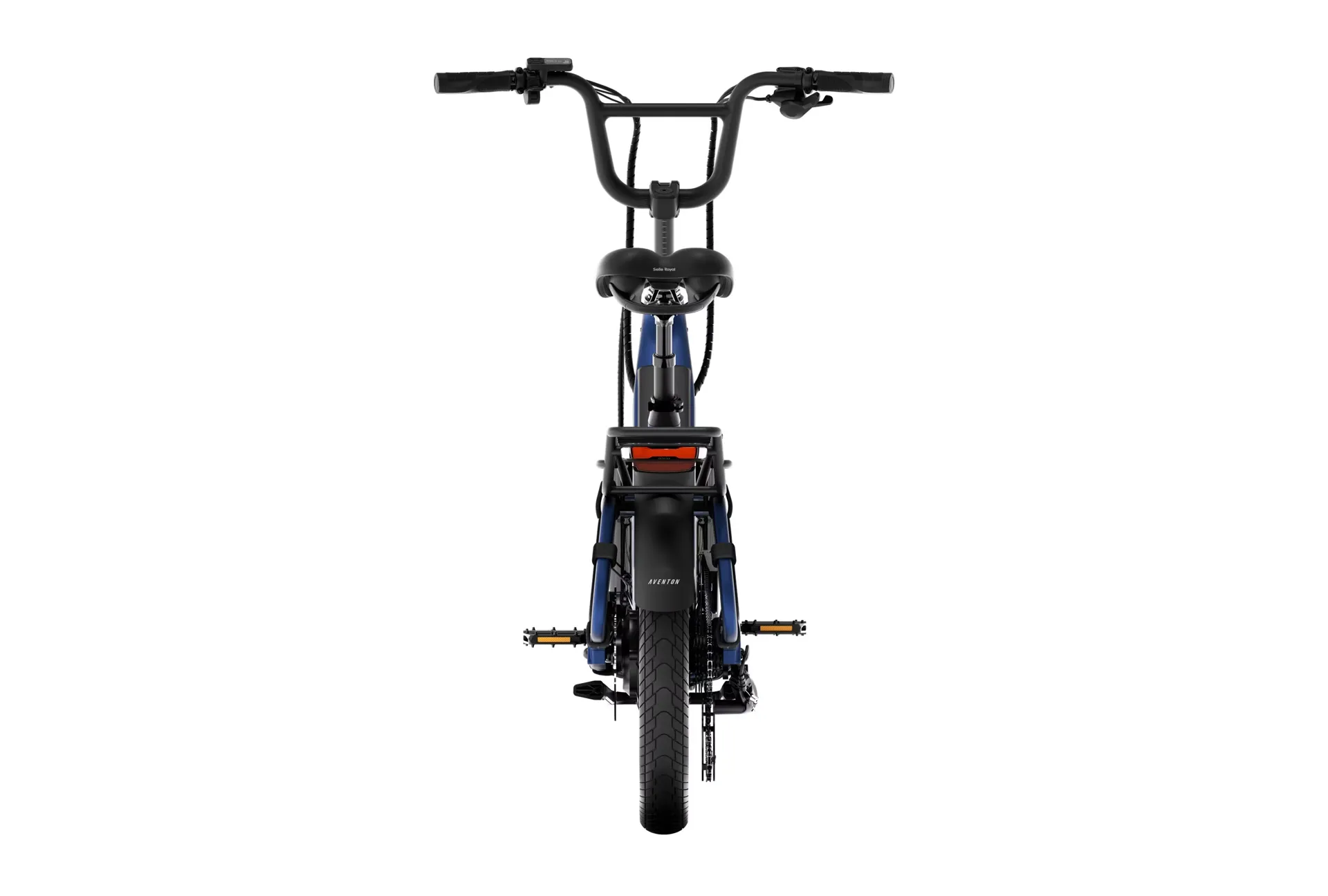

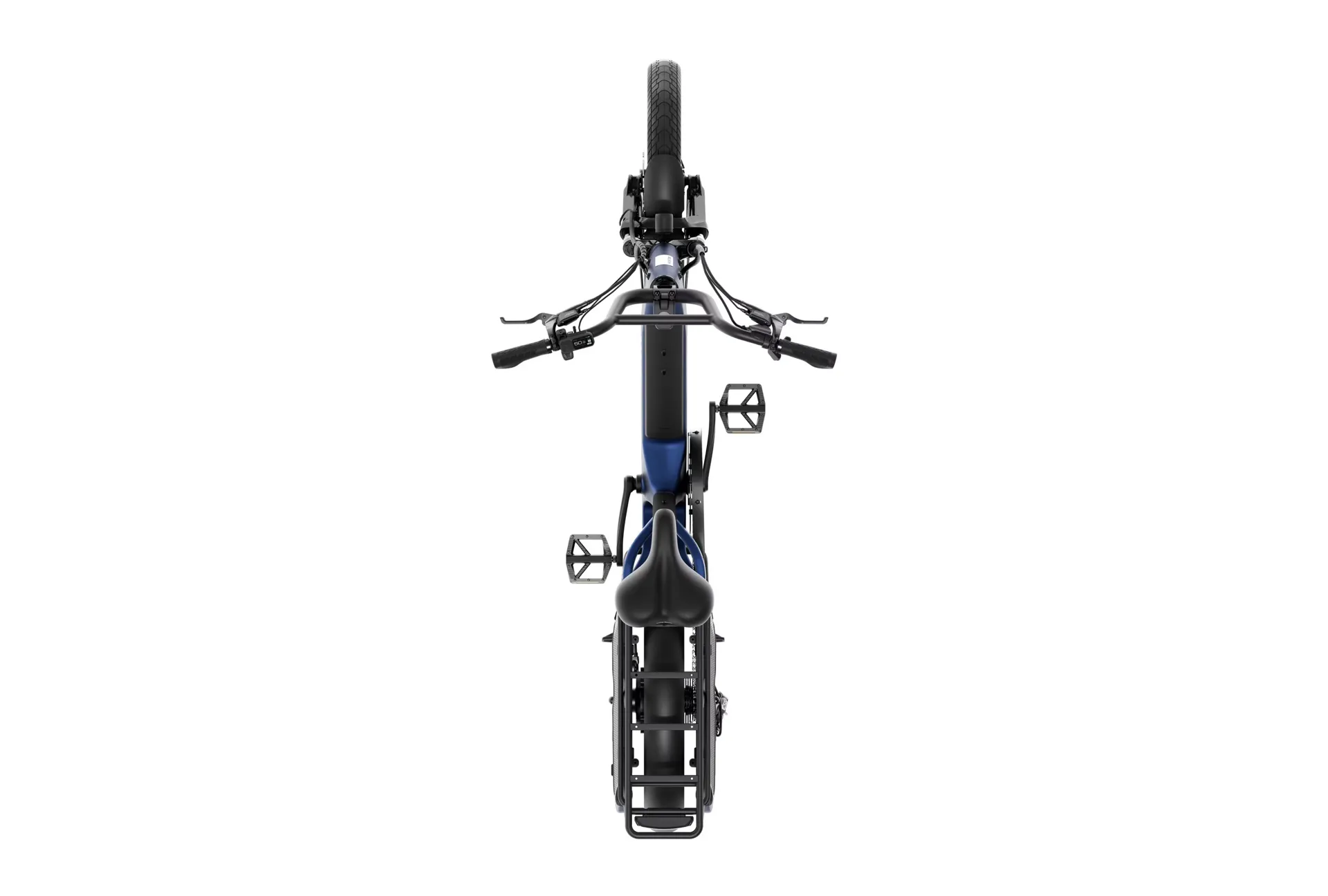

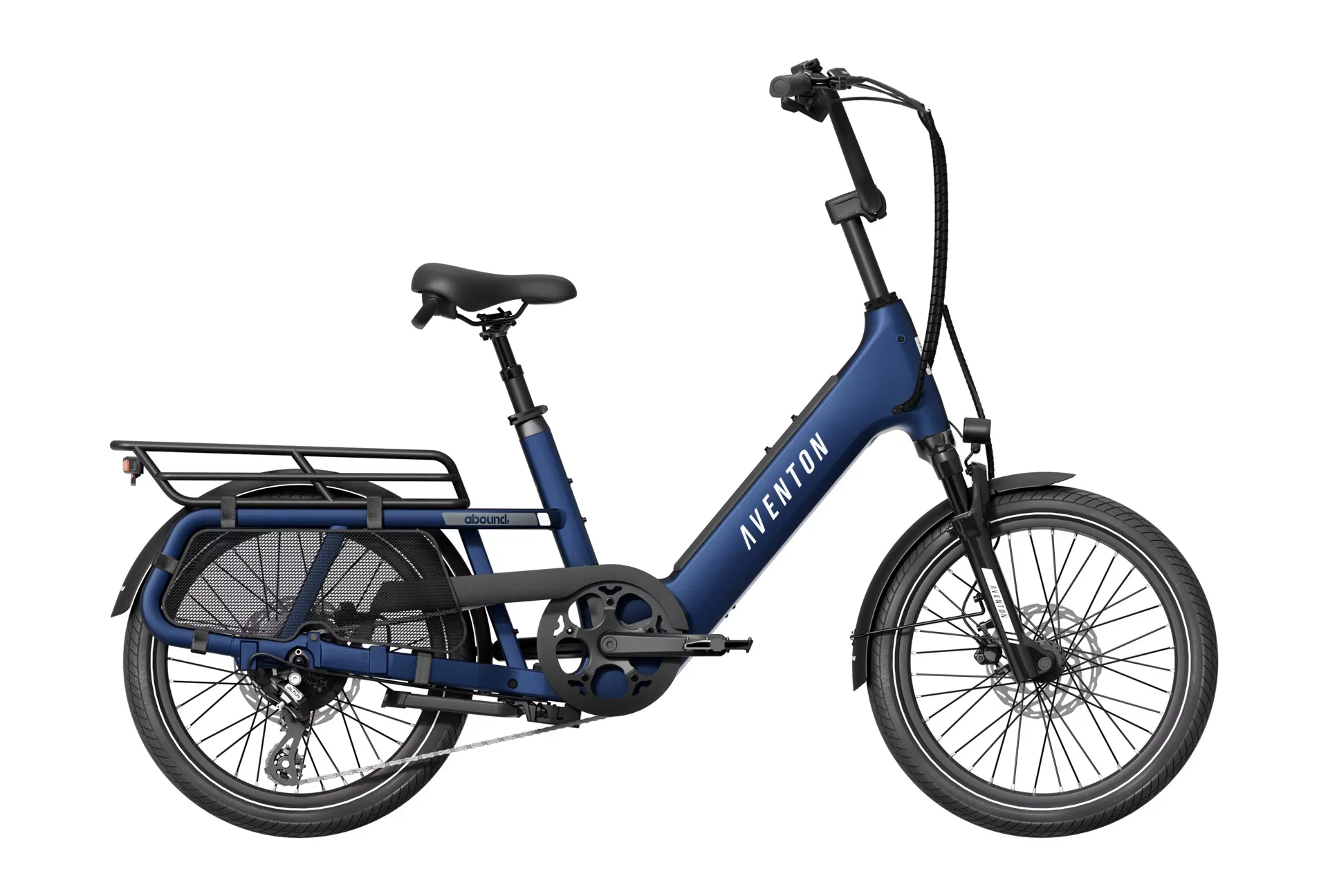

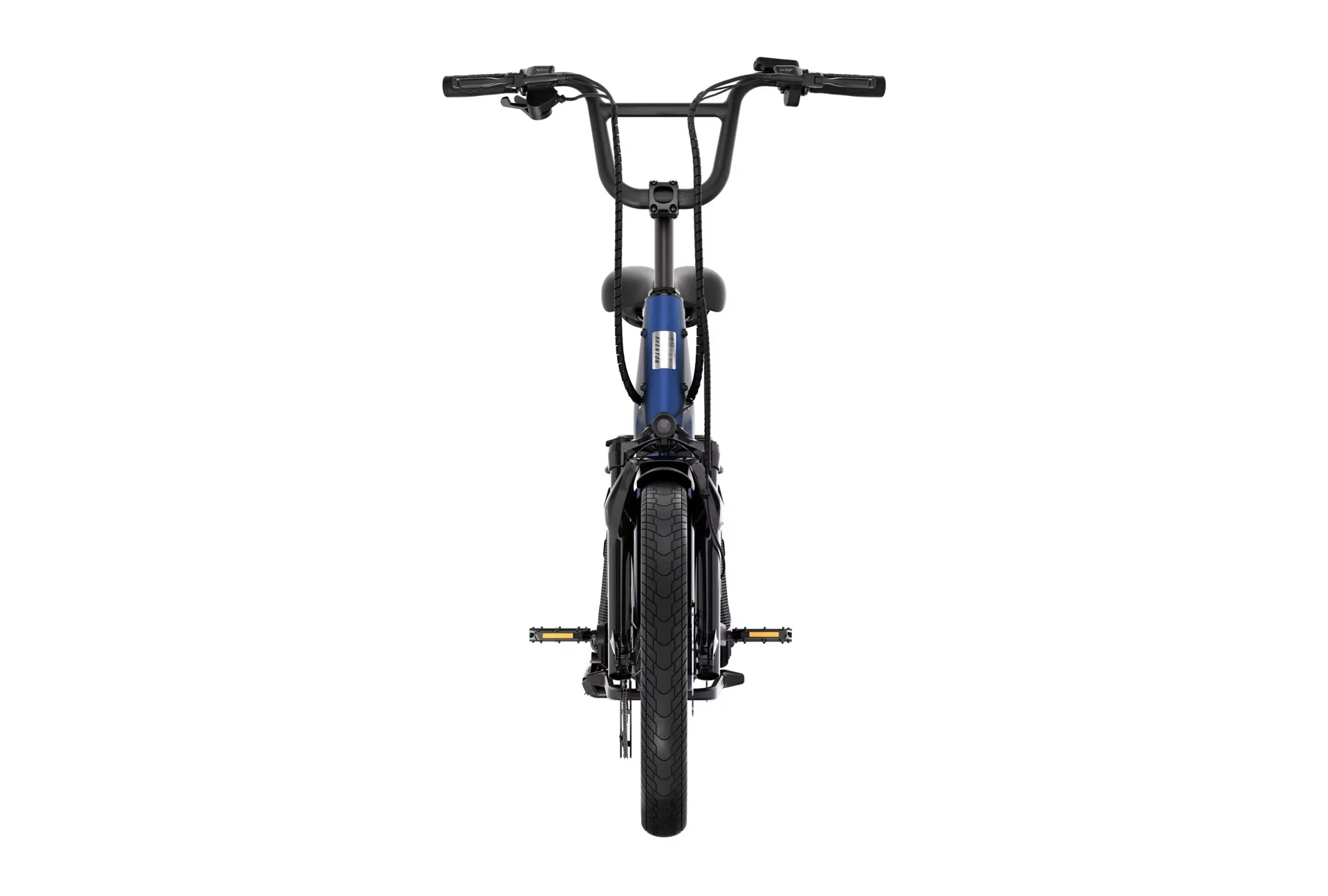

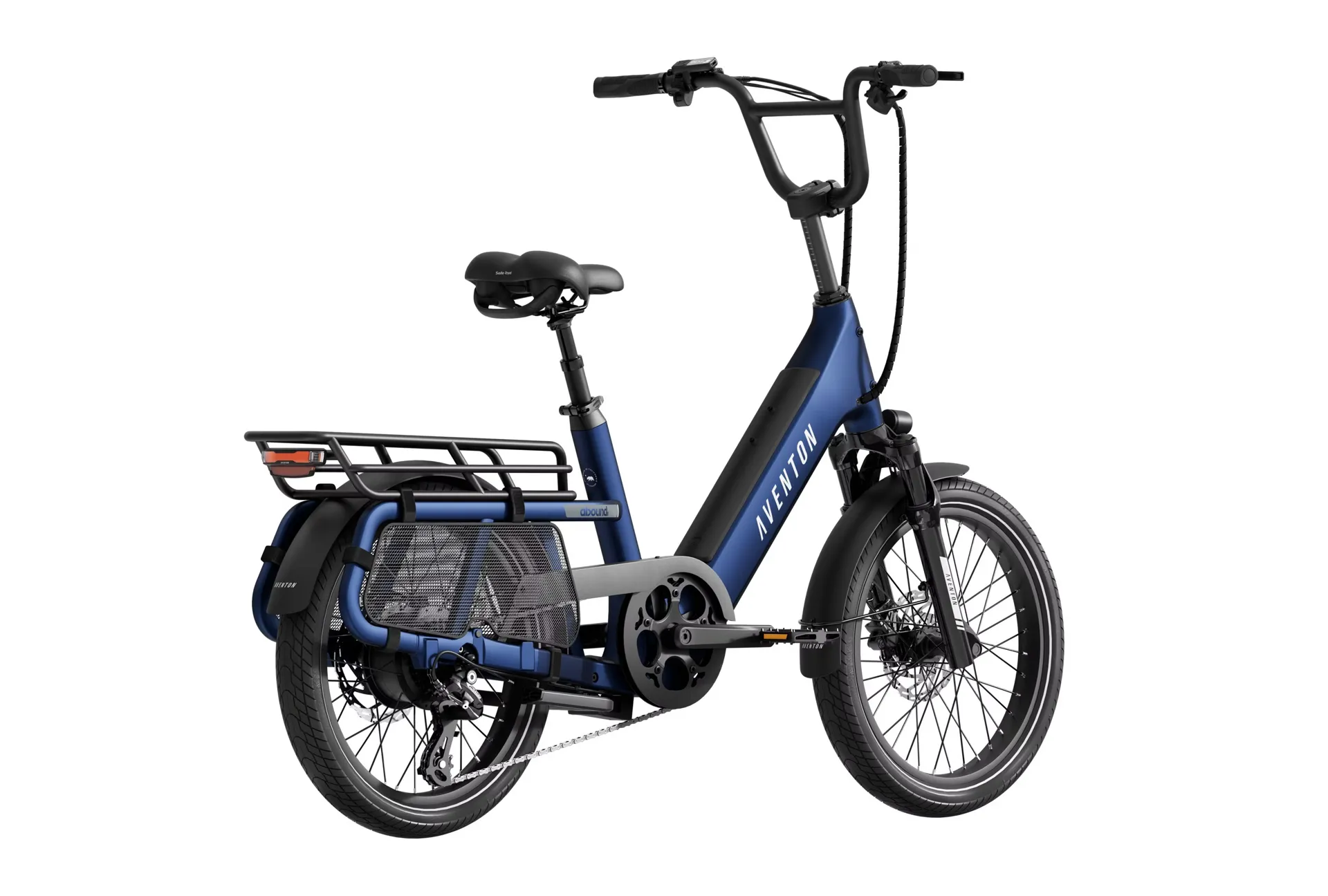

AVENTON ABOUND SR EBIKE COBALT BLUE

$1,899.00
Size Guide
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

Hassle free returns

Bike Return/Exchange PolicyBike ReturnsMerchandise Returns
Returns or Exchanges must be made within 72 hours. Bikes must be in new condition. Exchanges can be made for store credit on original sale price.Returns will be refunded to the original payment method, restrictions apply: Credit/Debit card used in original transaction must be present 15% Restocking Fee for bikes purchased from on-hand stock 25% Restocking fee for special order bikes.Returns or Exchanges on parts, accessories and general merchandise must be made within 5 days Items must be unopened and in new condition.



Late or missing refunds (if applicable)

If you haven’t received a refund yet, first check your bank account again. Then contact your credit card company, it may take some time before your refund is officially posted. Next contact your bank. There is often some processing time before a refund is posted.

If you’ve done all of this and you still have not received your refund yet, please contact us at ebikeconnections.com.

Sale items (if applicable)

Only regular priced items may be refunded, unfortunately sale items cannot be refunded.

Shipping

To return your product, you should mail your product to: 416 Madison Trade Plaza SE, Leesburg, VA 20175.

You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. If you receive a refund, the cost of return shipping will be deducted from your refund.

Depending on where you live, the time it may take for your exchanged product to reach you, may vary.

AVENTON ABOUND SR EBIKE COBALT BLUE

Season:2024

Brand:Aventon

Code:1E054-0023803

Introducing the all-new Abound SR—the enhanced cargo ebike built to carry anything and tackle every challenge. Whether you're cruising through the streets or bike pooling with a friend, the Abound SR is always ready for any action. Its compact frame keeps you agile, while advanced security† and GPS† features give you total peace of mind.

Outfitted with an adjustable quill stem, suspension seatpost, and cutting-edge theft deterrent features†, every ride is smooth, secure, and stress-free. Whether it’s a quick trip or a big haul, the Abound SR is your go-to for dominating the road.

Technical Information
MODEL
Abound SR Ebike
WEIGHT
80 lbs
TOTAL WEIGHT LIMIT
440 lbs
RIDER HEIGHT
4'11" - 6'3"
EBIKE CLASS
Class 2 Ebike
WATER RESISTANCE
IPX5
IDEAL USE
Cargo & Utility
PEDAL ASSIST
3 Levels (with Ride Tune Customization)
SAFETY CERTIFICATIONS
UL and TUV Safety Certified
UL 2849
RANGE
Up to 60 miles
FOLDING
No
BATTERY SAFETY CERTIFICATIONS
Certified to UL 2271
CARRY CAPACITY
Carry A Single Passenger
FRAMESET
FORK
Threaded Steerer Tube for Quill Stem 15x110 spacing, 50mm travel, adjustable lockout, black stanchions
FRAME STYLE
Step-Through
FRAME
6061 Aluminum Alloy with Internal Battery. One piece - Diecast aluminum front triangle
WHEELSET
TIRES
20 x 3.0 urban tire with reflective sidewalls
WHEELS
20-inch, 12-gauge, 36-hole, double-wall aluminum, black
EBIKE SYSTEM
MOTOR TORQUE
80Nm
ECU
Aventon ECU Module featuring wired CAN communication, GPS positioning support, wireless Bluetooth connectivity, and cellular communication capabilities

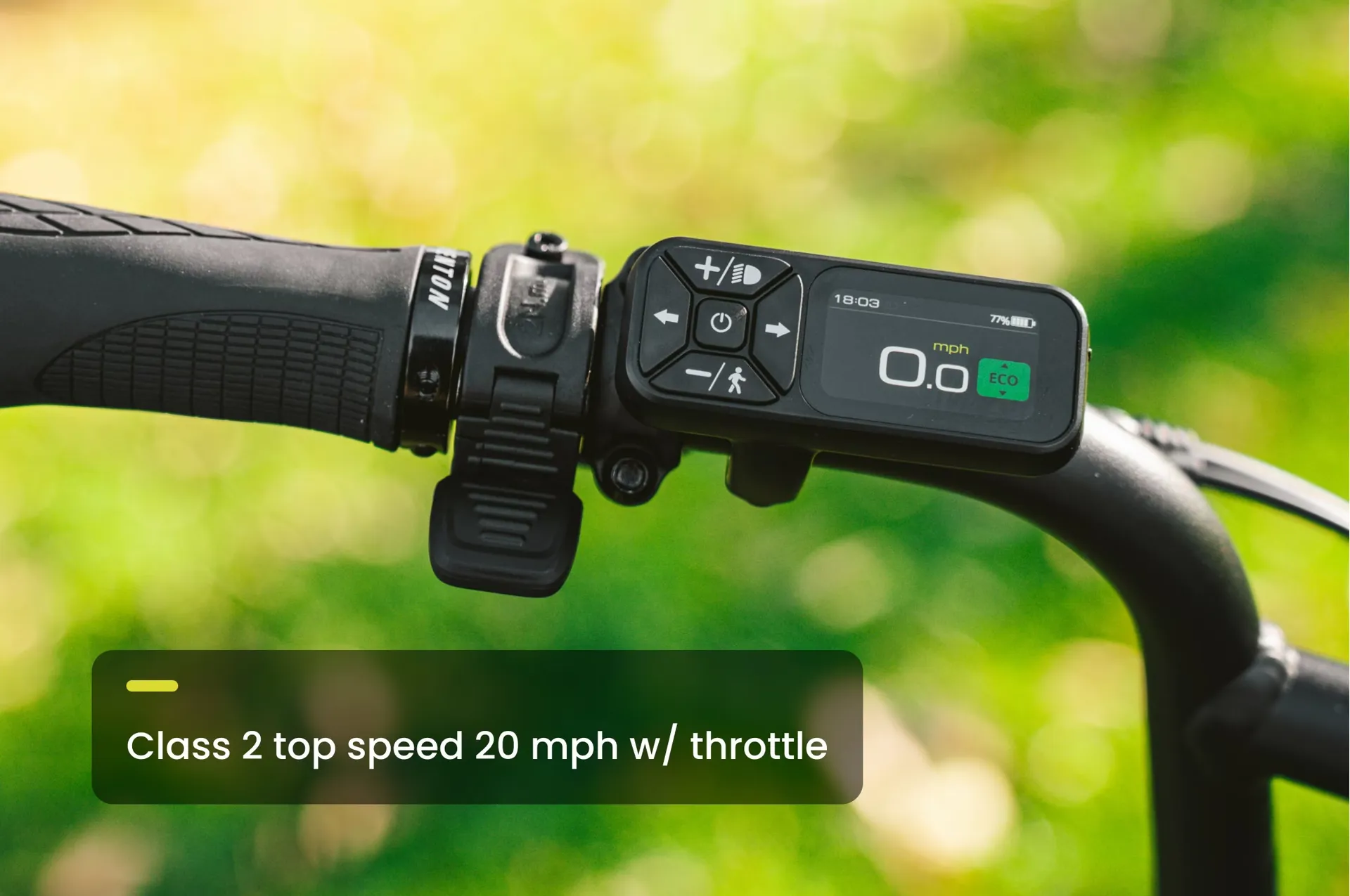

THROTTLE
Aventon LH Handlebar Mounted
SENSORS
Double Sided Bottom Bracket Torque Sensor
CHARGER
Aventon 4A 42V
DISPLAY
Aventon BC147
SPEED
Class 2
BATTERY
Aventon 36V, 20Ah, 733Wh, LG 21700 cells
MOTOR

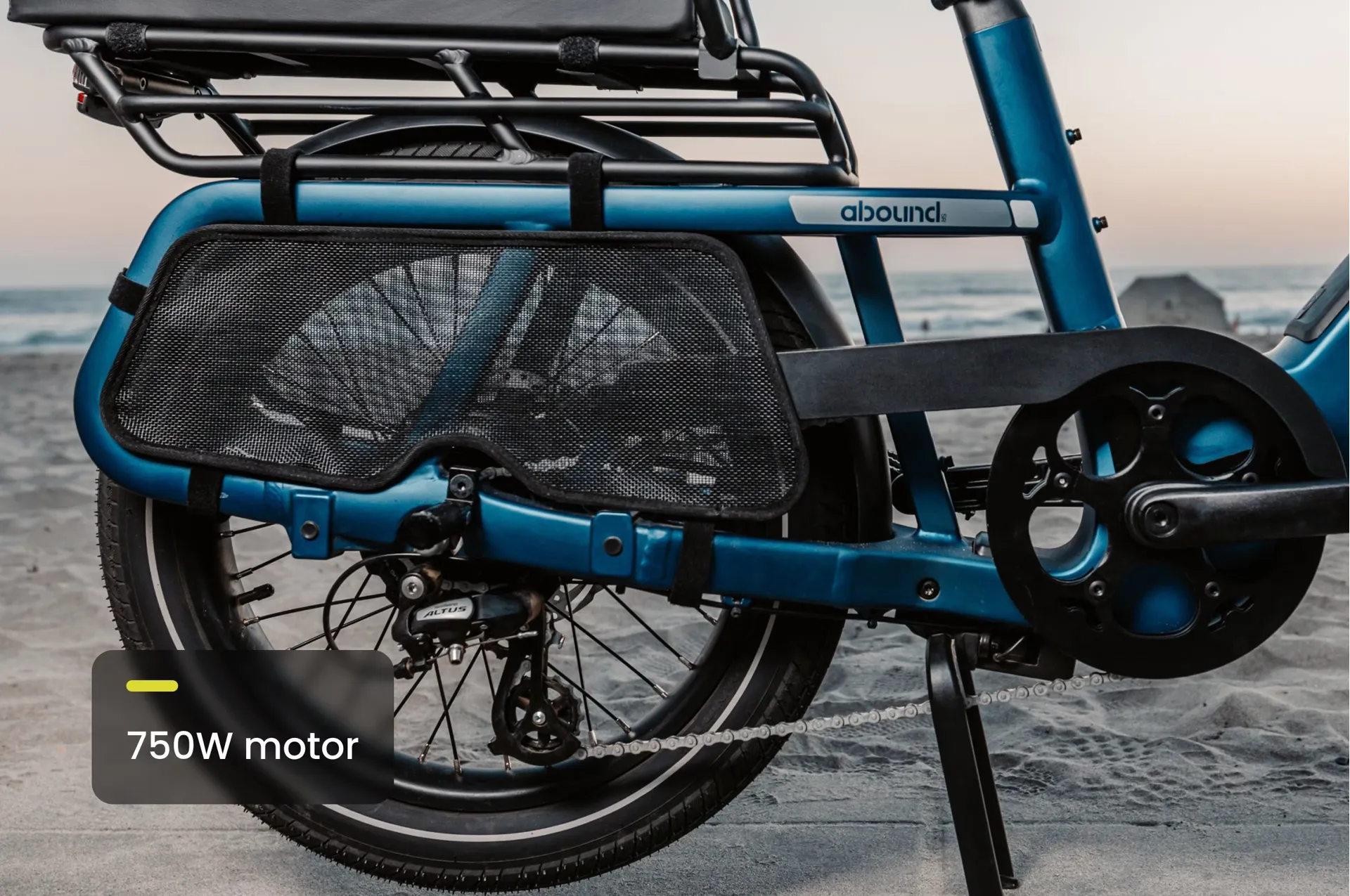

Shengyi 36V 750w Hub Drive with 6 speed sensors (1188W peak)
BRAKES
REAR BRAKE ROTOR
Tektro 203mm 6 bolt
FRONT BRAKE
Tektro HD-E3520 hydraulic disc brakes
REAR BRAKE
Tektro HD-E3520 hydraulic disc brakes
FRONT BRAKE ROTOR
Tektro 180mm 6 bolt
DRIVETRAIN
CHAIN
122 Link, 8 Speed
CHAINRING
52 tooth
CRANK
3pc, 165mm crank arm
REAR DERAILLEUR
Shimano Altus RD-M310 8 Speed
SHIFT LEVER
Shimano SL-M315-8R 8 Speed
CASSETTE
Shimano CS-HG200-8 8 speed Cassette, 12-32T
PEDALS
9/16" Composite Platform
COCKPIT
SADDLE
Aventon by SelleRoyal
SEATPOST
30.9mm Aventon Suspension Seatpost with 50mm travel
HANDLEBARS
BMX Style, 31.8mm bar clamp, 680mm width
STEM
Quill Stem with 31.8mm bar clamp diameter, 40mm length, and 140mm of vertical adjustment
SEAT CLAMP
34.9mm Quick Release
GRIPS
Lock-on ergonomic
INCLUDED ACCESSORIES
REAR RACK
Included
KICKSTAND
Included: E-lock
REAR WHEEL MESH GUARDS
Included
REAR RACK WEIGHT LIMIT
143 lbs
Technical Overview
The Abound SR ships as a Class II ebike, with pedal assist and throttle. The Abound SR will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited. Abound SR ebike and battery is UL Certified with UL 2849 for the ebike and UL 2271 for the battery. Aventon ebikes are built to the IPX5 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it's OK to ride your ebike in light rain. It won't be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don't use a pressure washer or sprayer to clean your ebike. *Max range is determined using PAS 1 throughout flat terrain with a rider weight of 160 lbs.
Sizing Information

Size:

One Size 4'11” - 6'3”

Geometry

Abound SR Ebike is available in 1 sizes to suit most adults.

Frame SizeOne size fits most
A - Seat Tube Length380mm (14")
B - Top Tube Length Horizontal610mm (24")
C - Bottom Bracket Drop-30mm (-1")
D - Head Tube Length210mm (8")
E - Head Tube Angle69°
F - Seat Tube Angle70°
G - Rear Chainstay Length480mm (18")
H - Front Wheel Center673mm (26")
I - Wheelbase1151.5mm (45")
J - Reach420mm (16")
K - Stack Height520mm (20")
L - Fork Length395mm (15")
M - Fork Offset38mm (1")
N - Trail63mm (2")
Rider Height4'11" - 6'3"
View Larger
Professional Opinion
Abound SR Ebike
Integrated Kickstand Lock
The kickstand lock keeps the bike securely parked by preventing it from being moved or rolled away while the kickstand is down—ideal for securely loading your cargo or passengers and for quick stops during your daily adventures.
Abound SR Ebike
Startup Password
The optional startup password adds customizable security by allowing you to set a personal code on the bike’s display, helping to prevent unauthorized use of your bike.
Abound SR Ebike
Cross-Model Keyless Battery System
Quickly unlock and remove your battery directly through the bike’s display, offering fast, secure, and convenient access without worrying about keeping track of a set of keys. With cross-model compatibility, your Abound SR battery will also work on the Aventure 3, Abound LR, Level 3, and Pace 4.
Abound SR Ebike
Geofencing†
Geofencing† lets you set virtual boundaries, eliminating power and sending alerts if the bike leaves a designated area—ideal for added security when parked near schools, shops, or during family outings.
