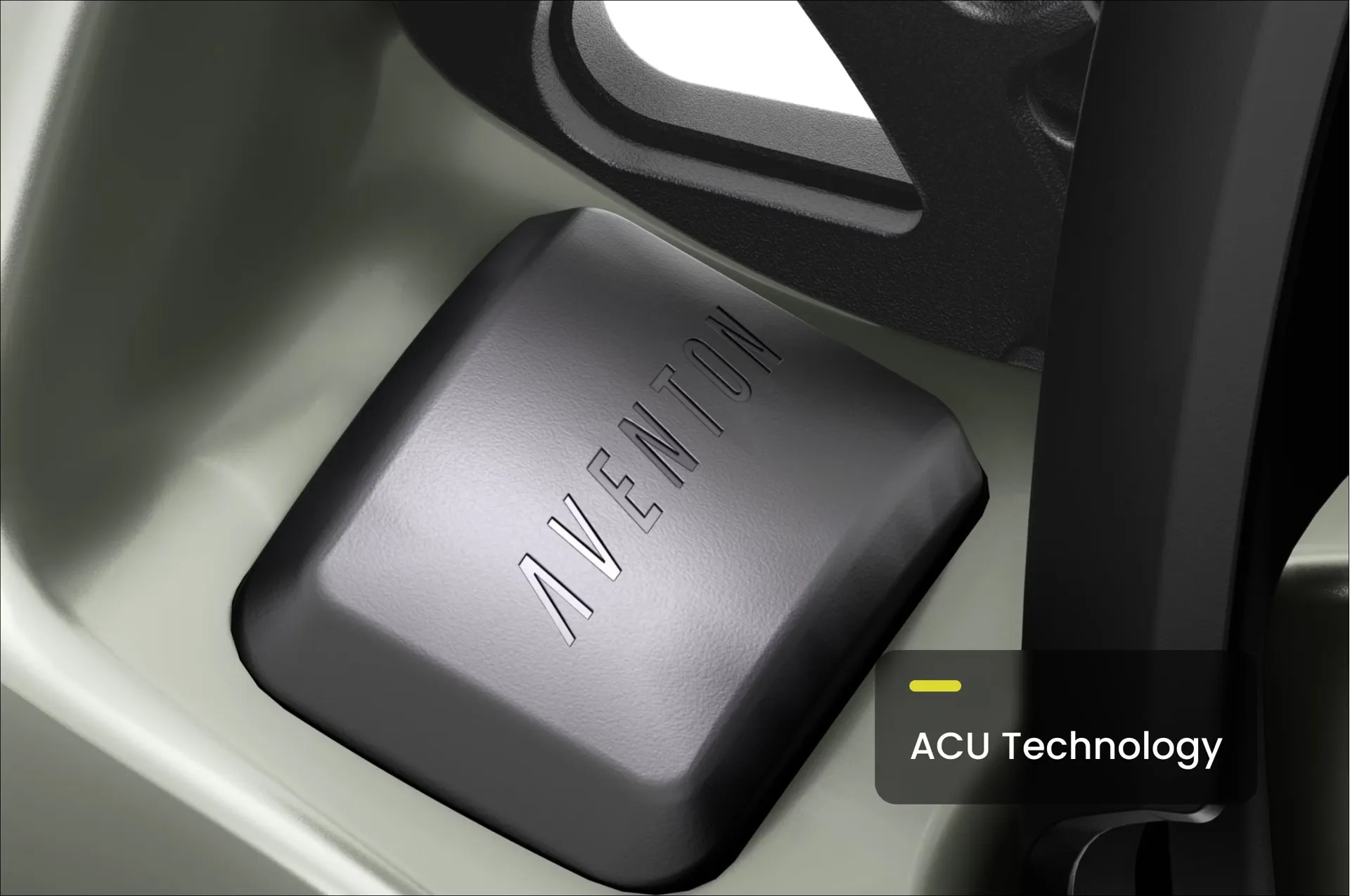

Take your commutes to the next LEVEL. The all new Level 3 comes fully equipped with everything you need to trade your daily drives for daily rides. A rear rack and fenders ensures you can carry necessities while staying clean and dry during your rides. A front suspension fork and suspension seat post provide maximum comfort on rougher terrain. Our ACU technology provides peace of mind with GPS† tracking, auto-lock, unusual movement detection, alarm system, and much more to keep your bike safe and secure. Comfortable geometry paired with an adjustable stem ensure the perfect fit, while the implementation of Ride Tune capabilities along with adjustments to Level 3's motor power curves provide up to an additional 10 miles of range compared to its predecessor. Ditch the traffic, and elevate your daily commutes with the Level 3
Take your commutes to the next LEVEL. The all new Level 3 comes fully equipped with everything you need to trade your daily drives for daily rides. A rear rack and fenders ensures you can carry necessities while staying clean and dry during your rides. A front suspension fork and suspension seat post provide maximum comfort on rougher terrain. Our ACU technology provides peace of mind with GPS† tracking, auto-lock, unusual movement detection, alarm system, and much more to keep your bike safe and secure. Comfortable geometry paired with an adjustable stem ensure the perfect fit, while the implementation of Ride Tune capabilities along with adjustments to Level 3's motor power curves provide up to an additional 10 miles of range compared to its predecessor. Ditch the traffic, and elevate your daily commutes with the Level 3
Aventon

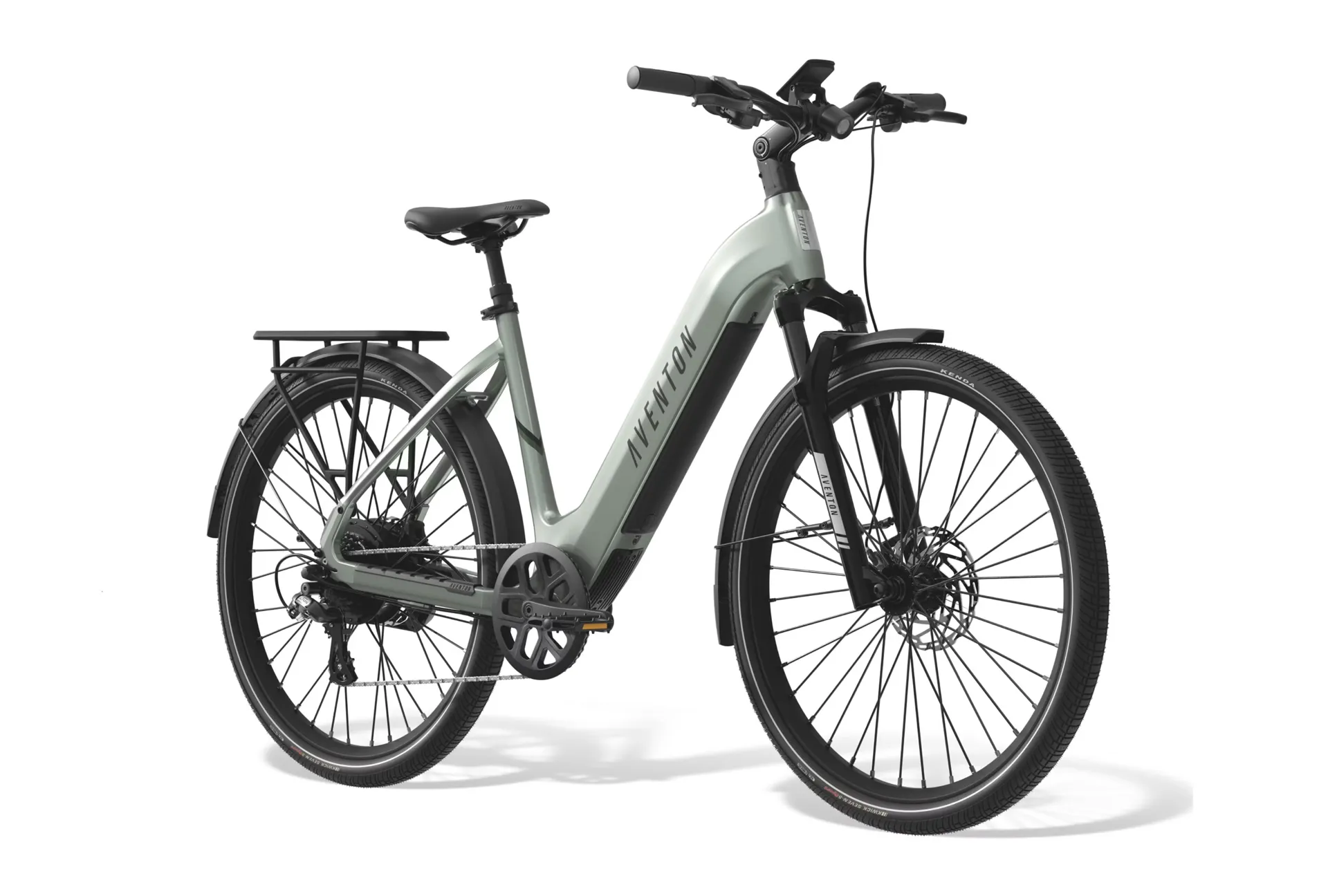

Aventon Level 3 Step Through Commuter Electric Bike L Glacier Mint

$1,899.00
Preorder

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritized (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or dispatch to you — it often never even hits the stock room shelves!

Prelaunch

With Prelaunch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Preorders.

So, instead, you can submit your email address for the item you are interested in, and we will email you as soon as stock arrives in the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indicative purposes only and can change at any time without notice.

The dates we provide are based on information given by our suppliers. Whenever we get updated information from our suppliers we will endeavor to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for dispatch to you or collection via Click & Collect on Undetermined

Hassle free returns

Bike Return/Exchange PolicyBike ReturnsMerchandise Returns
Returns or Exchanges must be made within 72 hours. Bikes must be in new condition. Exchanges can be made for store credit on original sale price.Returns will be refunded to the original payment method, restrictions apply: Credit/Debit card used in original transaction must be present 15% Restocking Fee for bikes purchased from on-hand stock 25% Restocking fee for special order bikes.Returns or Exchanges on parts, accessories and general merchandise must be made within 5 days Items must be unopened and in new condition.



Late or missing refunds (if applicable)

If you haven’t received a refund yet, first check your bank account again. Then contact your credit card company, it may take some time before your refund is officially posted. Next contact your bank. There is often some processing time before a refund is posted.

If you’ve done all of this and you still have not received your refund yet, please contact us at ebikeconnections.com.

Sale items (if applicable)

Only regular priced items may be refunded, unfortunately sale items cannot be refunded.

Shipping

To return your product, you should mail your product to: 416 Madison Trade Plaza SE, Leesburg, VA 20175.

You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. If you receive a refund, the cost of return shipping will be deducted from your refund.

Depending on where you live, the time it may take for your exchanged product to reach you, may vary.

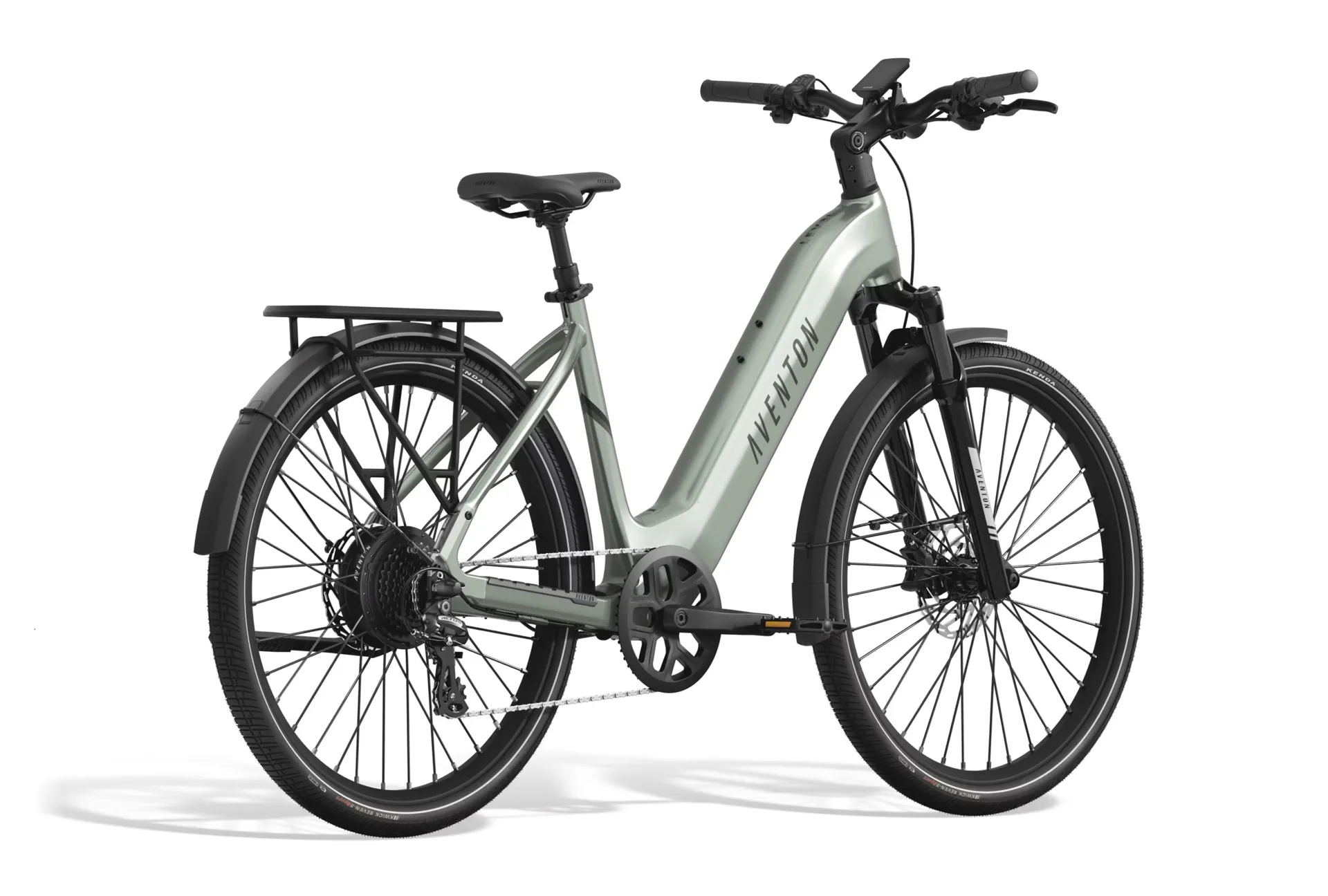

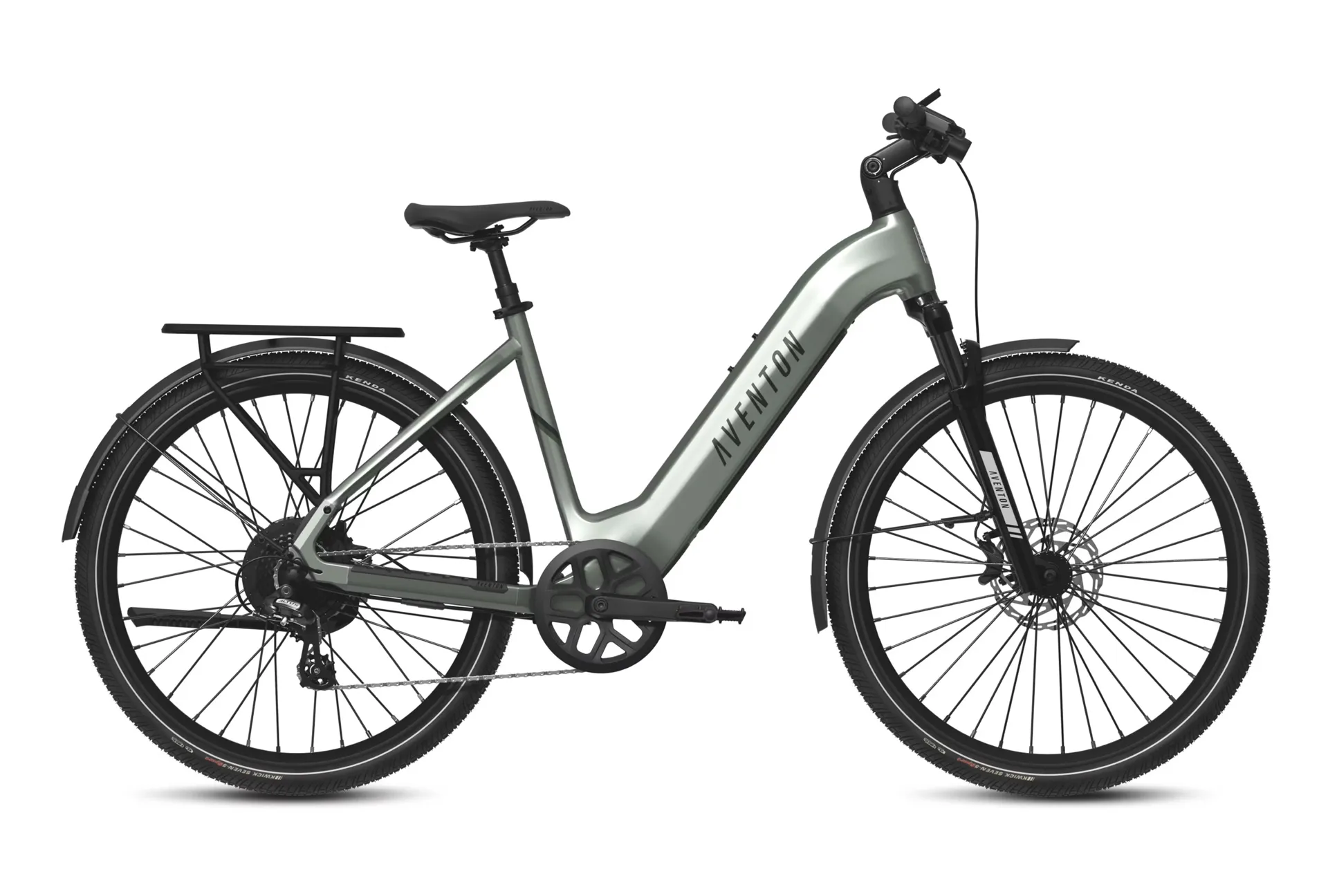

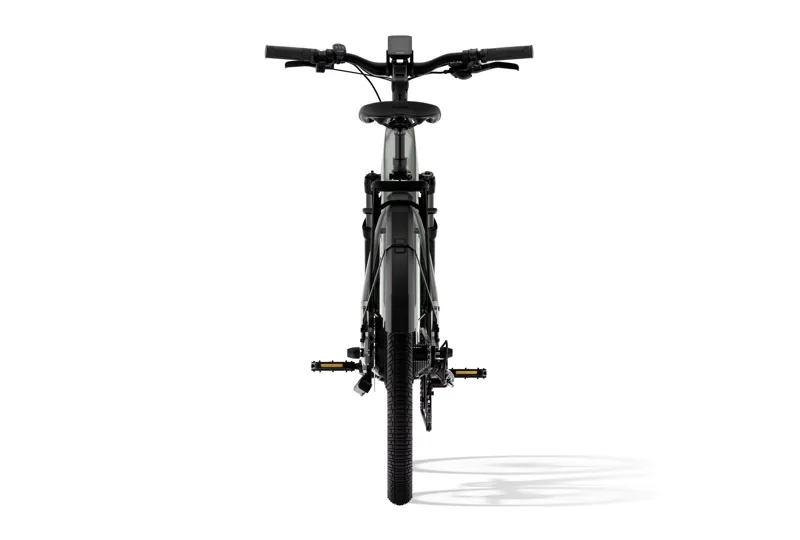

Aventon Level 3 Step Through Commuter Electric Bike L Glacier Mint

Season:2024

Brand:Aventon

Code:1E027-0044805

TOP SPEED
20MPH
(Adjustable to 28MPH)
RANGE
Up to 70 Miles

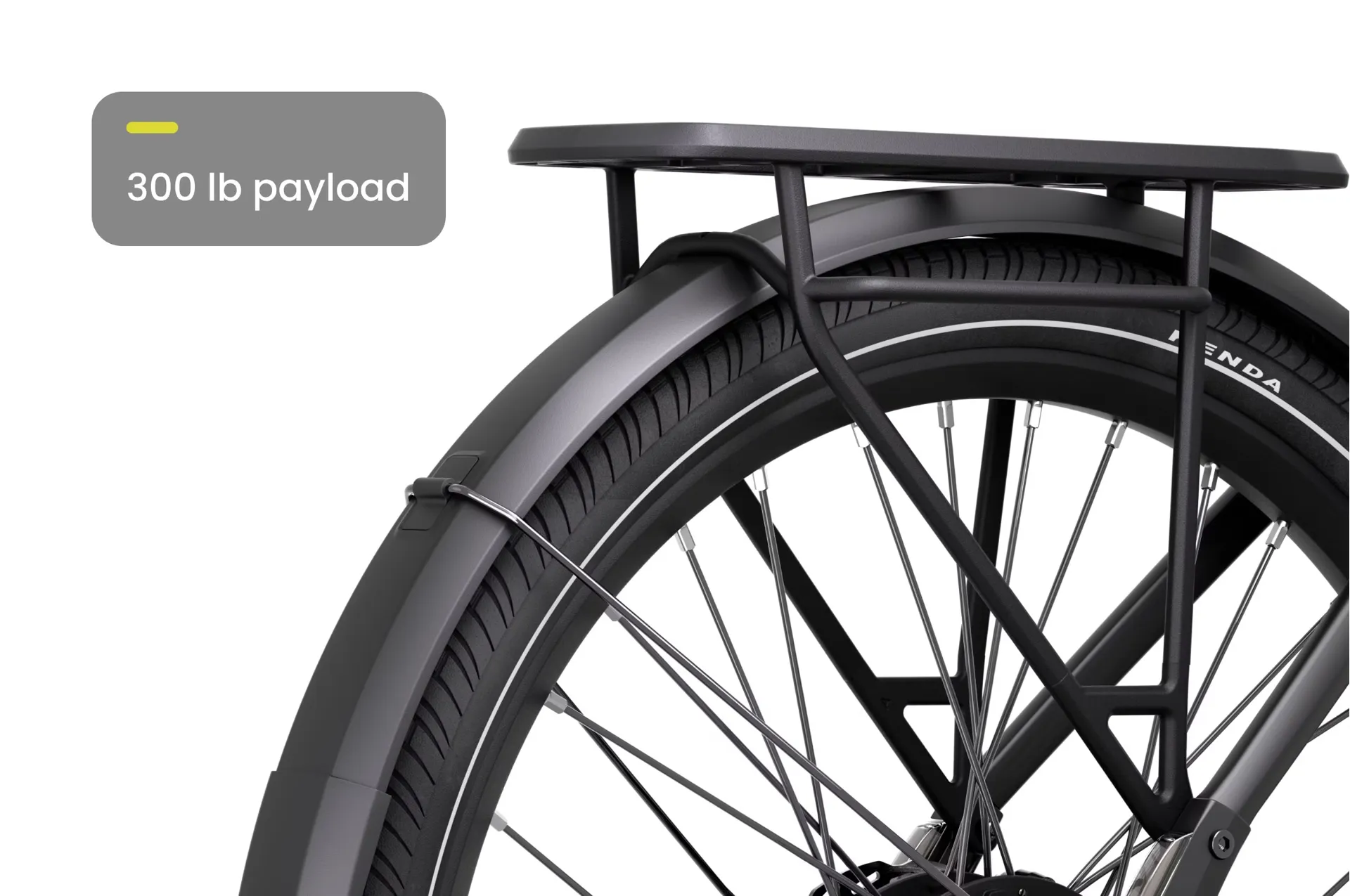

PAYLOAD CAPACITY
300 lbs

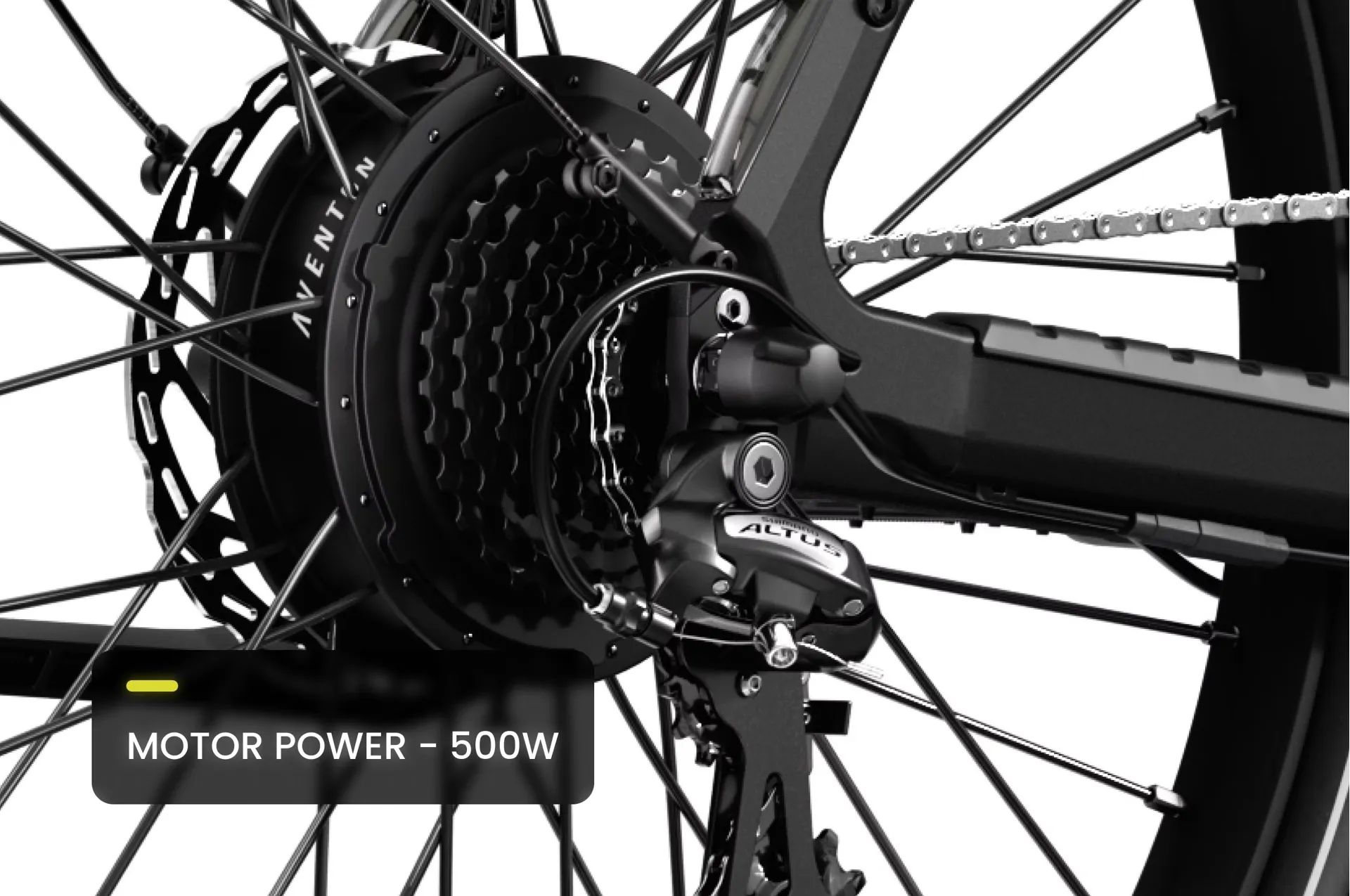

MOTOR POWER
500W
(864W Peak)

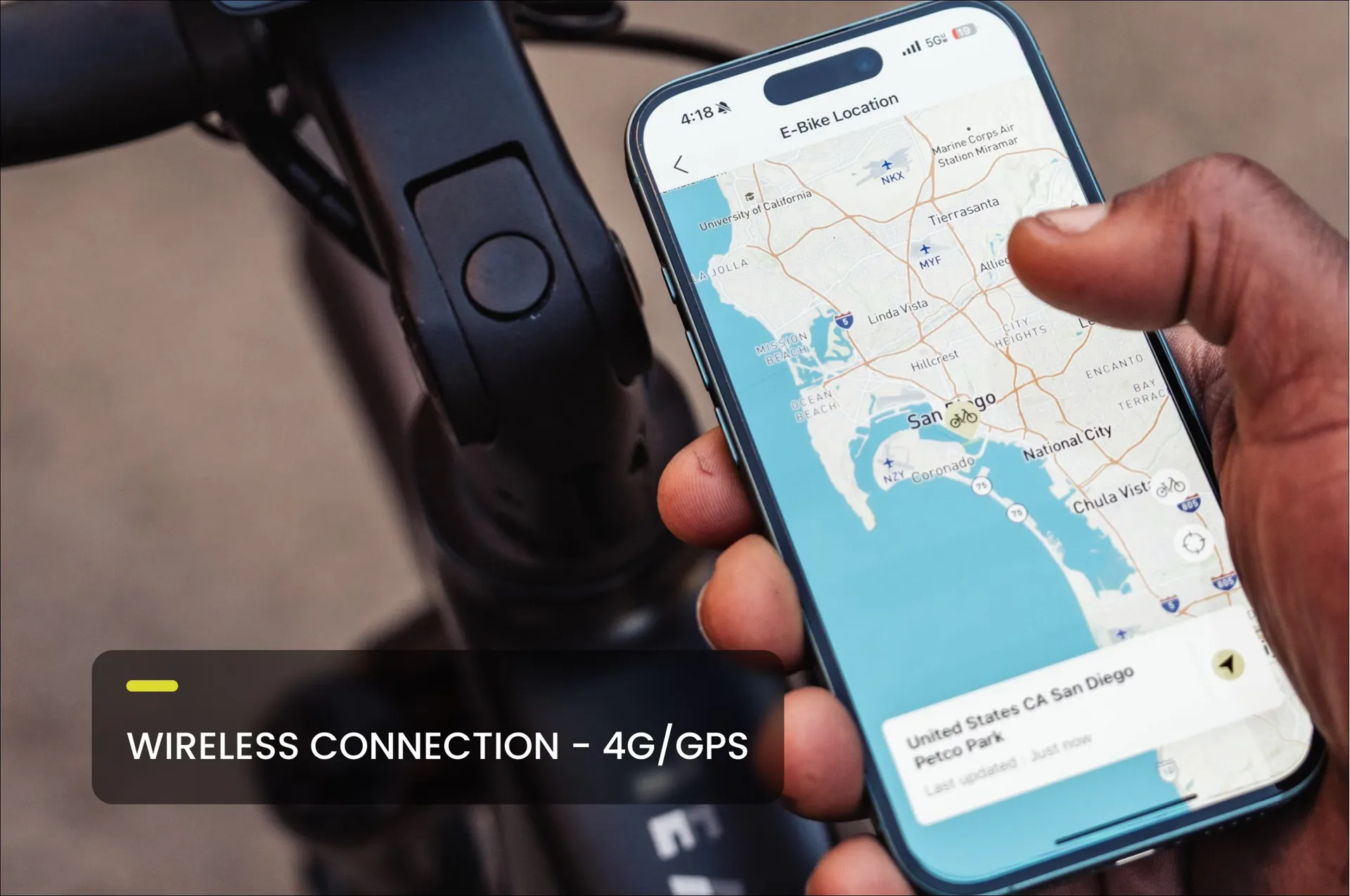

WIRELESS CONNECTION
4G/GPS

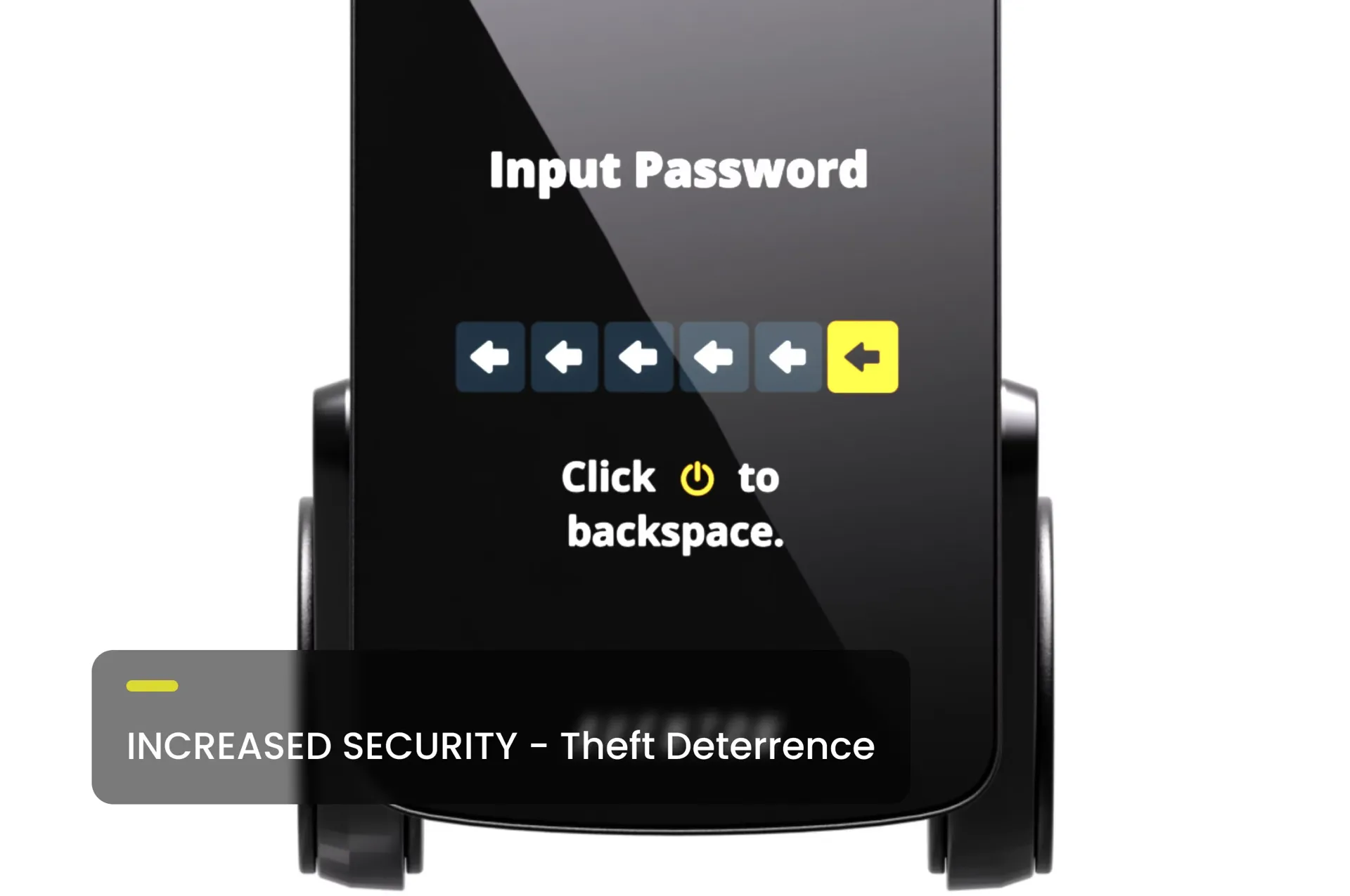

INCREASED SAFETY
Theft Deterrence

UL Safety Certified

UL Safety Certified

Certified in accordance with UL 2849 / UL 2271

Technical Information
TECHNICAL SPECIFICATIONS
GENERAL INFO
MODEL
Level 3 Step Through Ebike
WEIGHT
67lbs
TOTAL WEIGHT LIMIT
300 lbs
BOX SIZE
61"x13"x34"
RIDER HEIGHT
4'11" - 6'1"
EBIKE CLASS
Class 2 Ebike
WATER RESISTANCE
IPX5
RANGE
Up to 70 Miles
BATTERY SAFETY CERTIFICATIONS
SAFETY CERTIFICATIONS
IDEAL USE
Commuting
PEDAL ASSIST
3 Levels (with Ride Tune Customization)
FRAMESET
FRAME
6061 Aluminum, Gravity Cast Front Triangle
FORK
Aventon Suspension Fork, 80mm travel, w/ lockout,coil spring. 15x100mm thru-axle, 43mm offset
REAR SPACING
142mm
FORK SPACING
110mm
FRAME STYLE
Step-Through
WHEELSET
FRONT WHEEL
27.5in, 13g, 36hole, double wall Aluminum, Thru axle, Schrader Valve, black
REAR WHEEL
27.5in, 12g, 36hole, double wall Aluminum, Nutted Hub Drive Motor, Scharder Valve, black
TIRES
Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20
EBIKE SYSTEM
MOTOR
36V, 500W (sustained), 864W (peak)
MOTOR TORQUE
60Nm
DISPLAY
Aventon BC280
BATTERY
Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
BATTERY WEIGHT
8.7lbs
CONTROLLER
36V, 24A

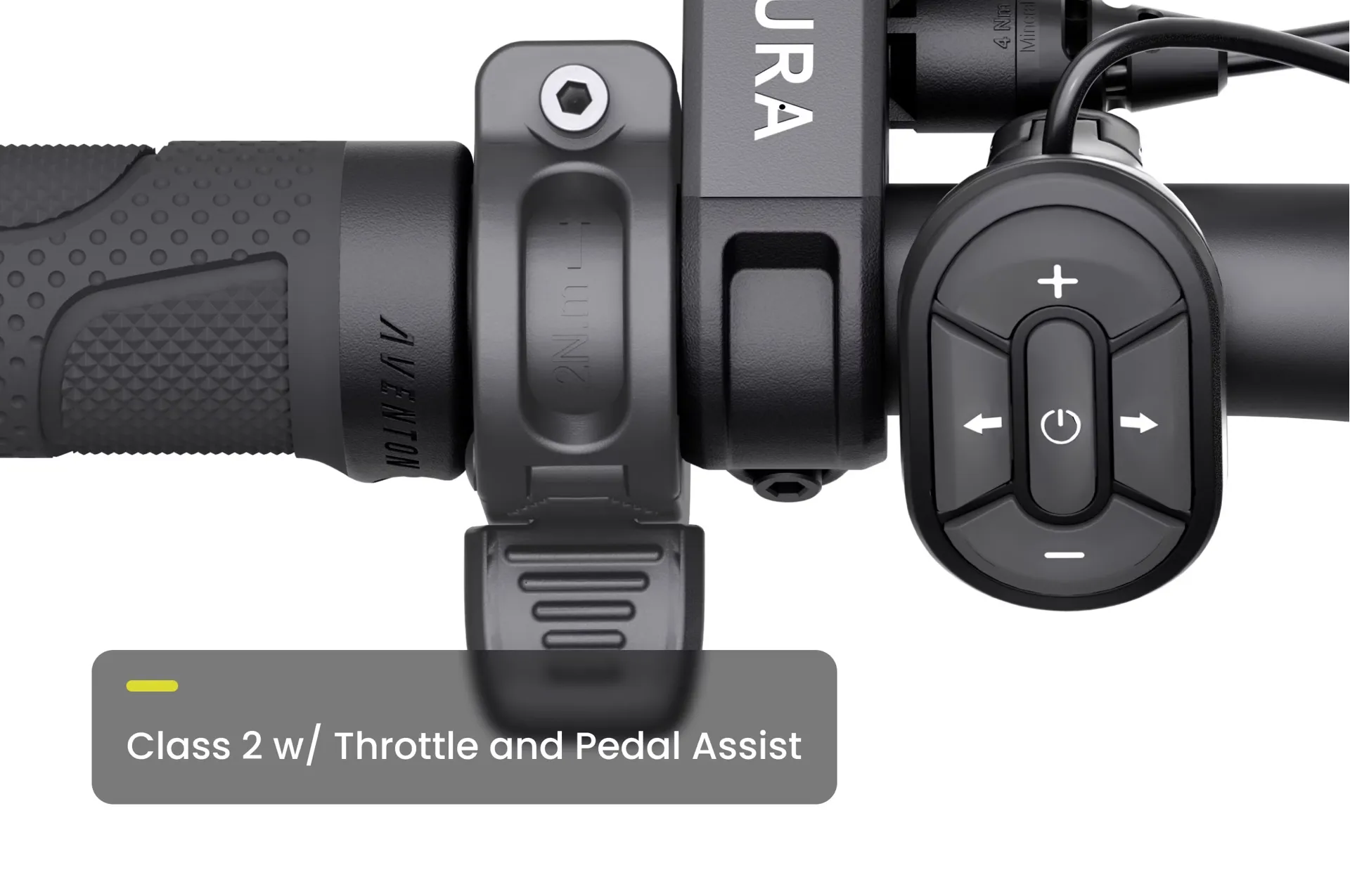

THROTTLE
Aventon LH Handlebar Mounted
SENSORS
Double Sided Bottom Bracket Torque Sensor
CHARGER
36V Output: 42V/ 4A
CHARGING TIME FROM 0% TO 100%
5 hours
LIGHTS
Front and rear lights integrated
SPEED
Class 2
BRAKES
FRONT BRAKE
Magura AT-2 Hydraulic disc brake / Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
REAR BRAKE
Magura AT-2 Hydraulic disc brake / Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire
FRONT BRAKE ROTOR
Magura MDR-A 180mm 6 Bolt Rotor / Tektro 180mm 6 Bolt Rotor
REAR BRAKE ROTOR
Magura MDR-A 180mm 6 Bolt Rotor / Tektro 180mm 6 Bolt Rotor
DRIVETRAIN
REAR DERAILLEUR
Shimano Altus RD-M310
SHIFTER
Shimano 8 Speed Trigger SL-M315-8R
CHAIN
7/8 speed 120L
CASSETTE
12-32T / 8 Speed Shimano CS HG200-8
CHAINRING
48T
CHAINRING BCD
104
CRANKSET
3pc, 170mm crank arm
BOTTOM BRACKET
Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm
PEDALS
9/16" Composite Platform
COCKPIT
SADDLE
Aventon Saddle
SEATPOST
30.9mm Aventon Suspension Seatpost with 50mm travel
SEATPOST CLAMP
34.9mm
HANDLEBARS
Aluminum 31.8mm, 680mm
GRIPS
Aventon Lock on grips
HEADSET
Sealed Bearing Headset
INCLUDED ACCESSORIES
REAR RACK WEIGHT LIMIT
60lbs
Technical Overview
The Level 3 comes out of the box as a Class 2 ebike, with pedal assist and throttle. It can be unlocked to a Class 3 ebike. The Level 3 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited or only Class 1 bikes are permitted. Aventon ebikes are built to the IPX5 water-resistant standard. IPX5 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike. *Max range determined using PAS 1 throughout flat terrain with a rider weight of 160 lb.
Sizing Information

Geometry

Level 3 Step Through Ebike is available in 2 sizes to suit most adults.

RegularLarge
A - Seat Tube Length400mm (15")480mm (18")
B - Top Tube Length Horizontal607mm (23")634mm (25")
C - Bottom Bracket Drop50mm (2")50mm (2")
D - Head Tube Length130mm (5")130mm (5")
E - Head Tube Angle70°70°
F - Seat Tube Angle74°74°
G - Rear Chainstay Length480mm (18")480mm (18")
H - Front Wheel Center675mm (26")701mm (27")
I - Wheelbase1150mm (45")1176.8mm (46")
J - Reach423mm (16")450mm (17")
K - Stack Height610mm (24")610mm (24")
L - Fork Length480mm (18")480mm (18")
M - Fork Offset43mm (1")43mm (1")
N - Trail81mm (3")81mm (3")
Wheel Size in Inches27.5"27.5"
Stand Over Height442mm (17")442mm (17")
Rider Height (Range)150 - 170 cm (4'11 - 5'7")170cm - 185 cm (5'7 - 6'1")
