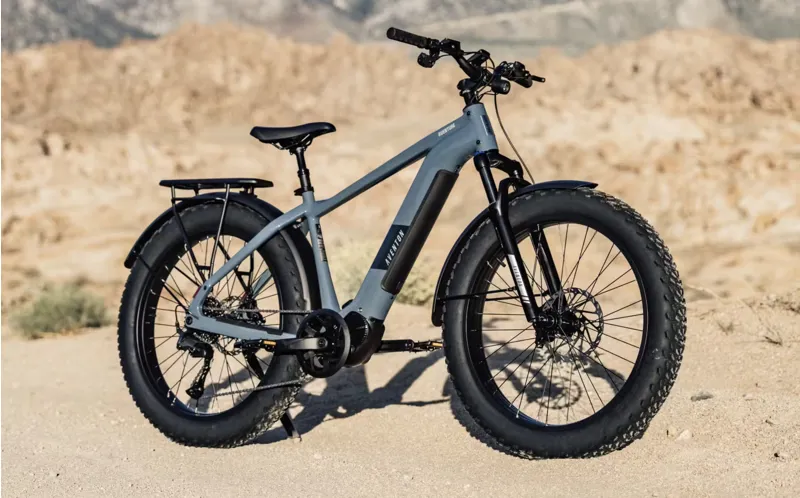

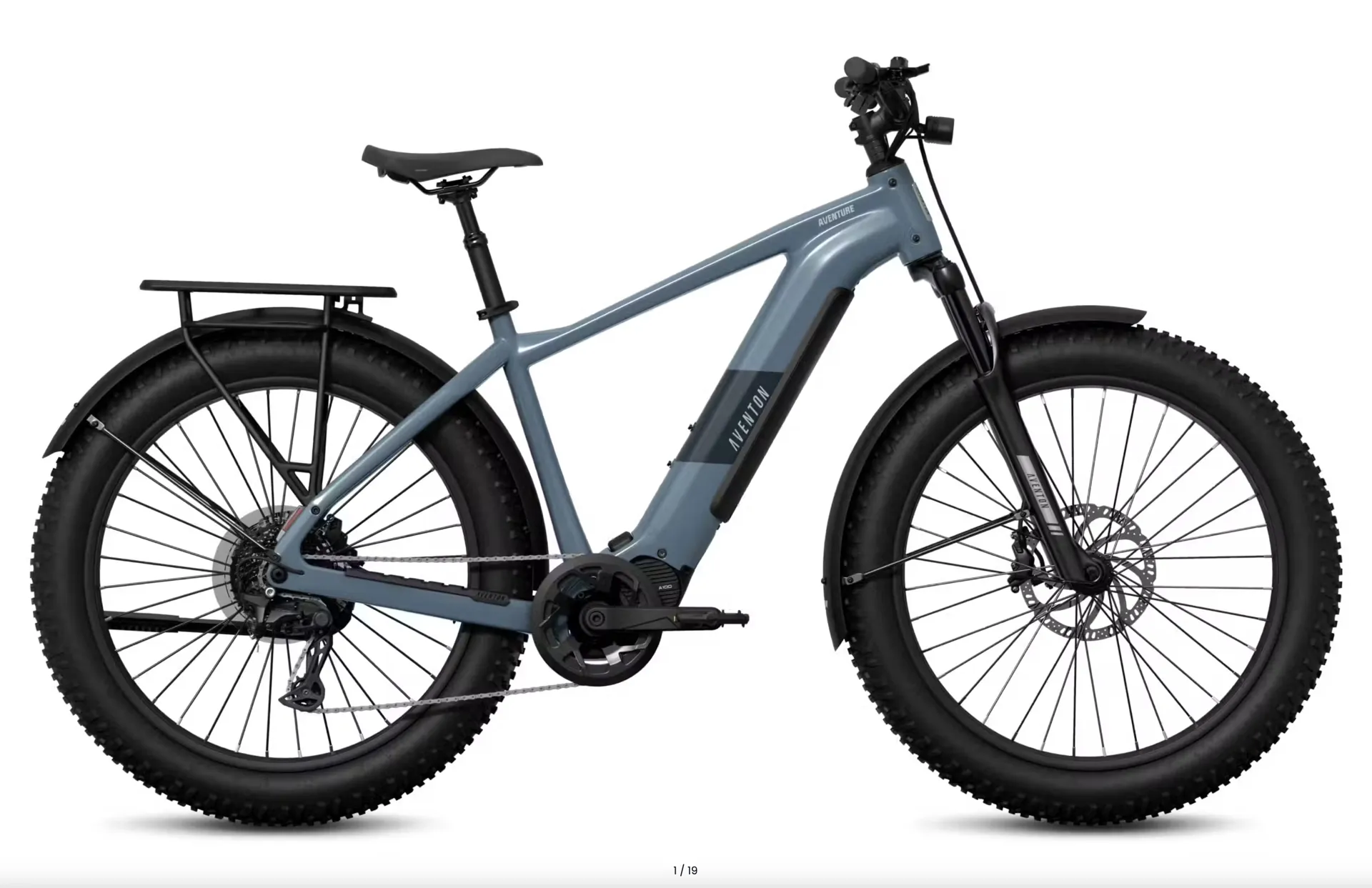

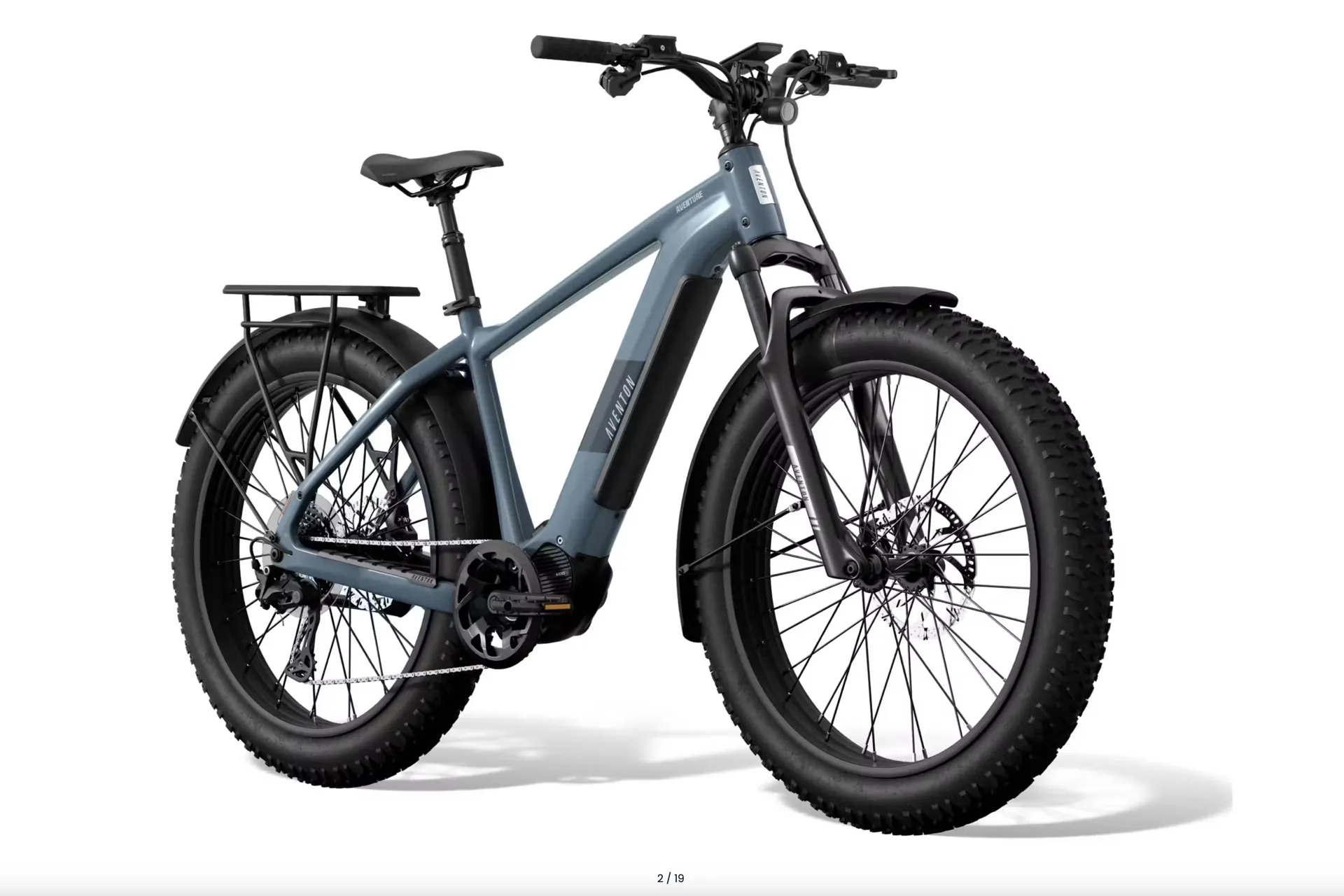

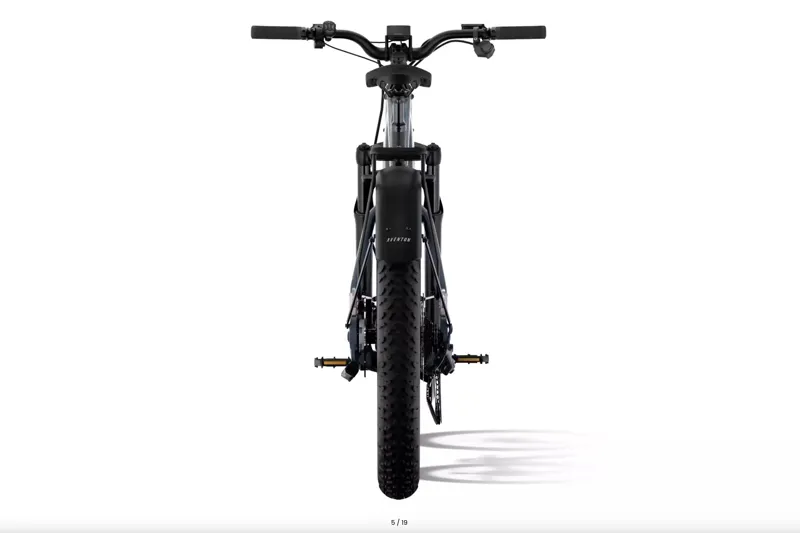

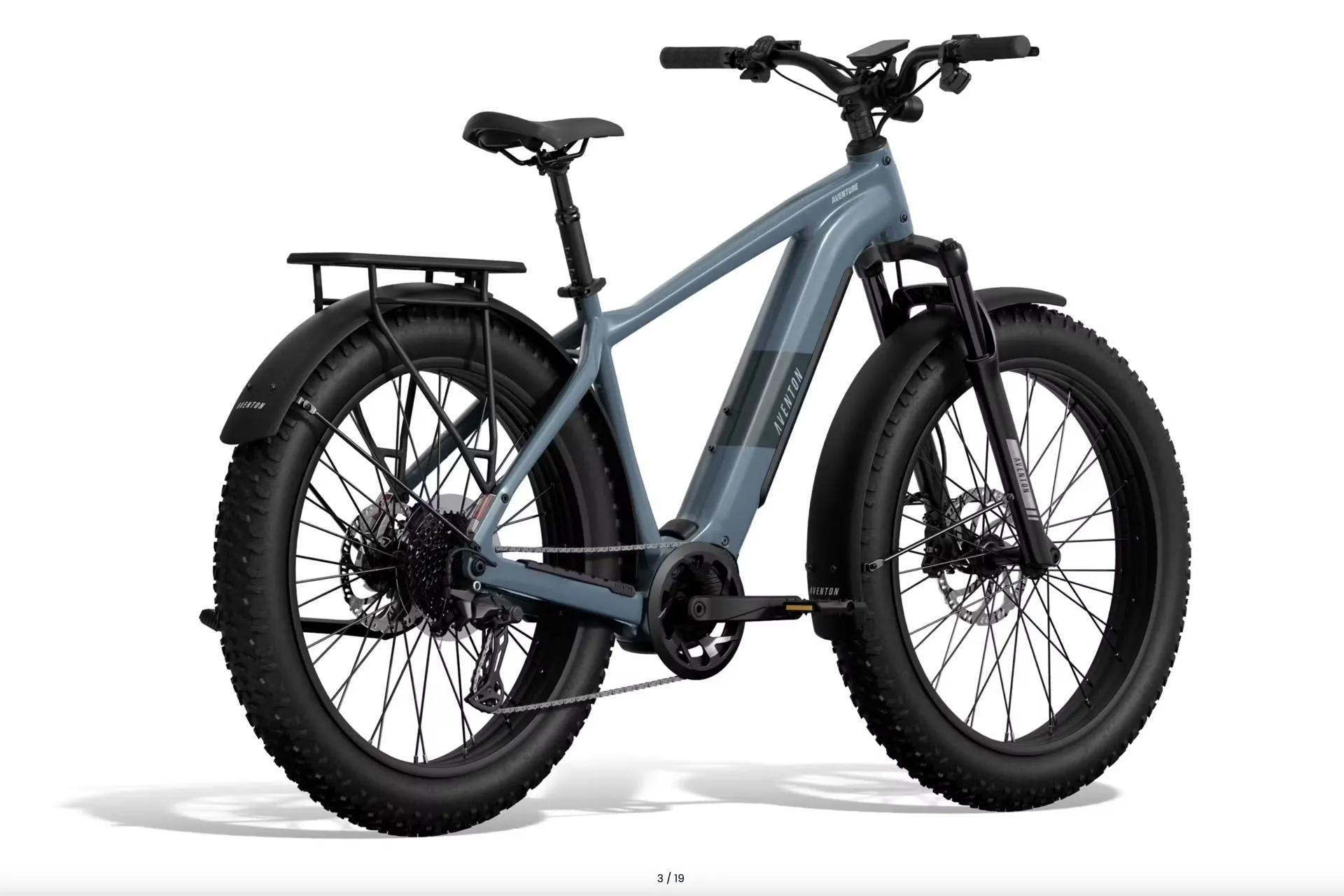

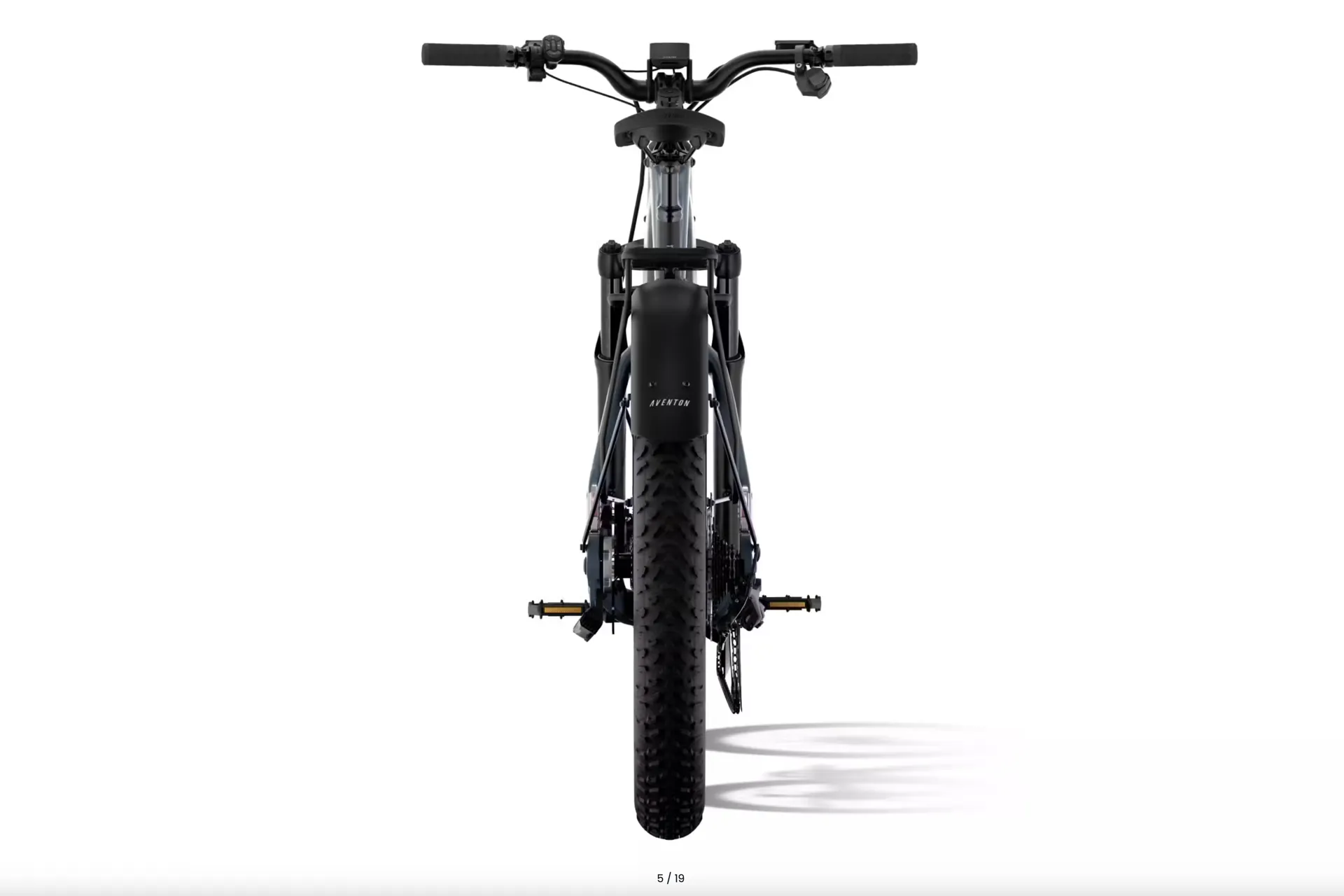

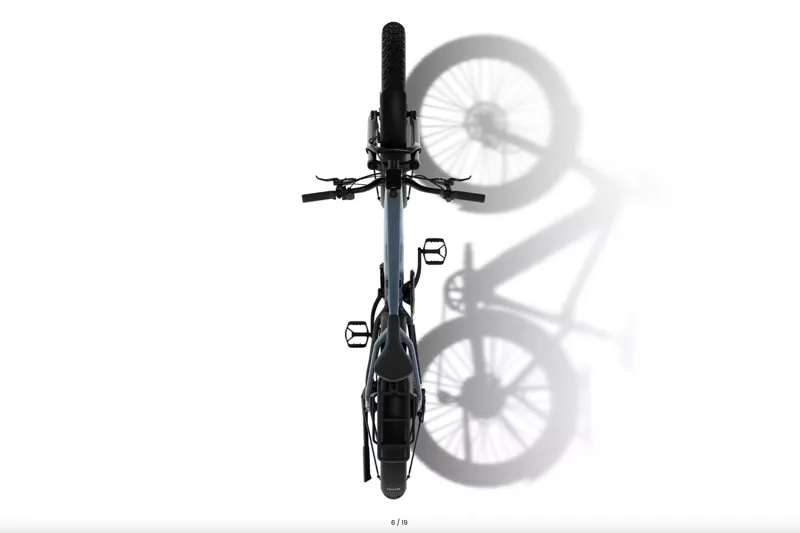

Aventon Aventure M Ebike Pacific Blue Large

Season:2024

Brand:Aventon

Code:1E037-0074801

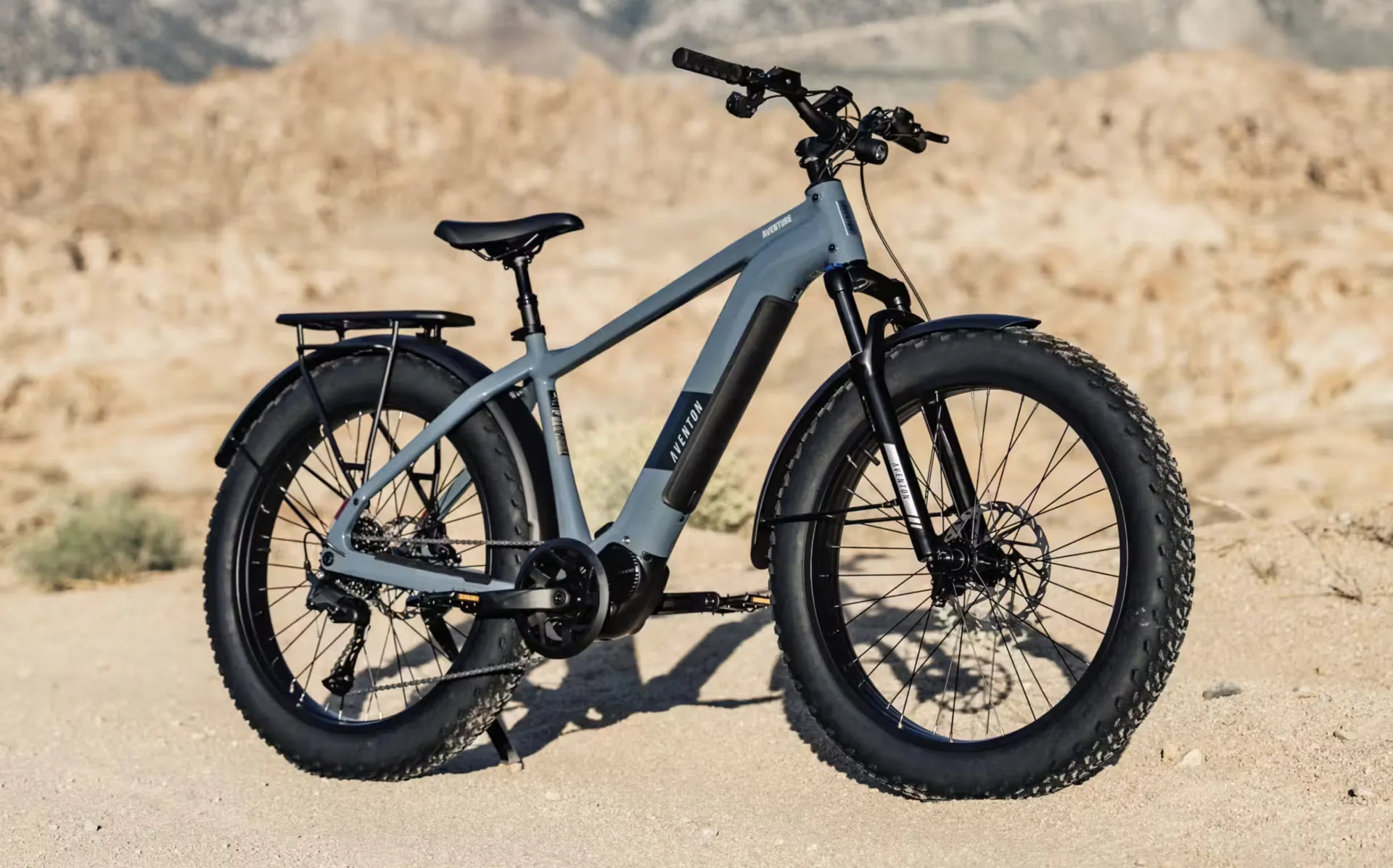

Aventure M is the perfect blend of rugged capability, performance, and technology to help you explore further than ever before. With meticulously designed frame geometry, a 80mm suspension fork, and 4.0" tires, there's nowhere the Aventure M can't take you. The Aventon A100 mid drive motor provides enough torque and power to conquer any terrain, giving you a responsive ride feel that can be easily customized with Ride Tune capabilities.
Technical Information
General Info
Model: Aventure M Ebike
Ideal Use: All-Terrain Performance
Weight: 73 lbs
Total Weight Limit: 400 lbs
Rider Height: L: 5'10" - 6'4"
Ebike Class: Class 1 (Aftermarket Throttle Available for Class 2 Conversion. Can also be converted to Class 3)
Range: Up to 85 Miles
Water Resistance: Bike - IPX6 // Motor - IP67
Battery Safety Certifications: Certified to UL 2271
Safety Certifications: UL Safety Certified
UL 2849

Frameset
Fork: Aventon/Zoom Suspension Fork, 80mm travel, with lockout
Rear Spacing: 190mm
Fork Spacing: 135mm
Frame: 6061 Aluminum

Wheelset
Front Wheel: 26in, 36 hole, Aluminum Fat tire Rim, Thru Axle, Schrader Valve
Rear Wheel: 26in, 36 hole, Aluminum Fat tire Rim, Thru Axle, Schrader Valve

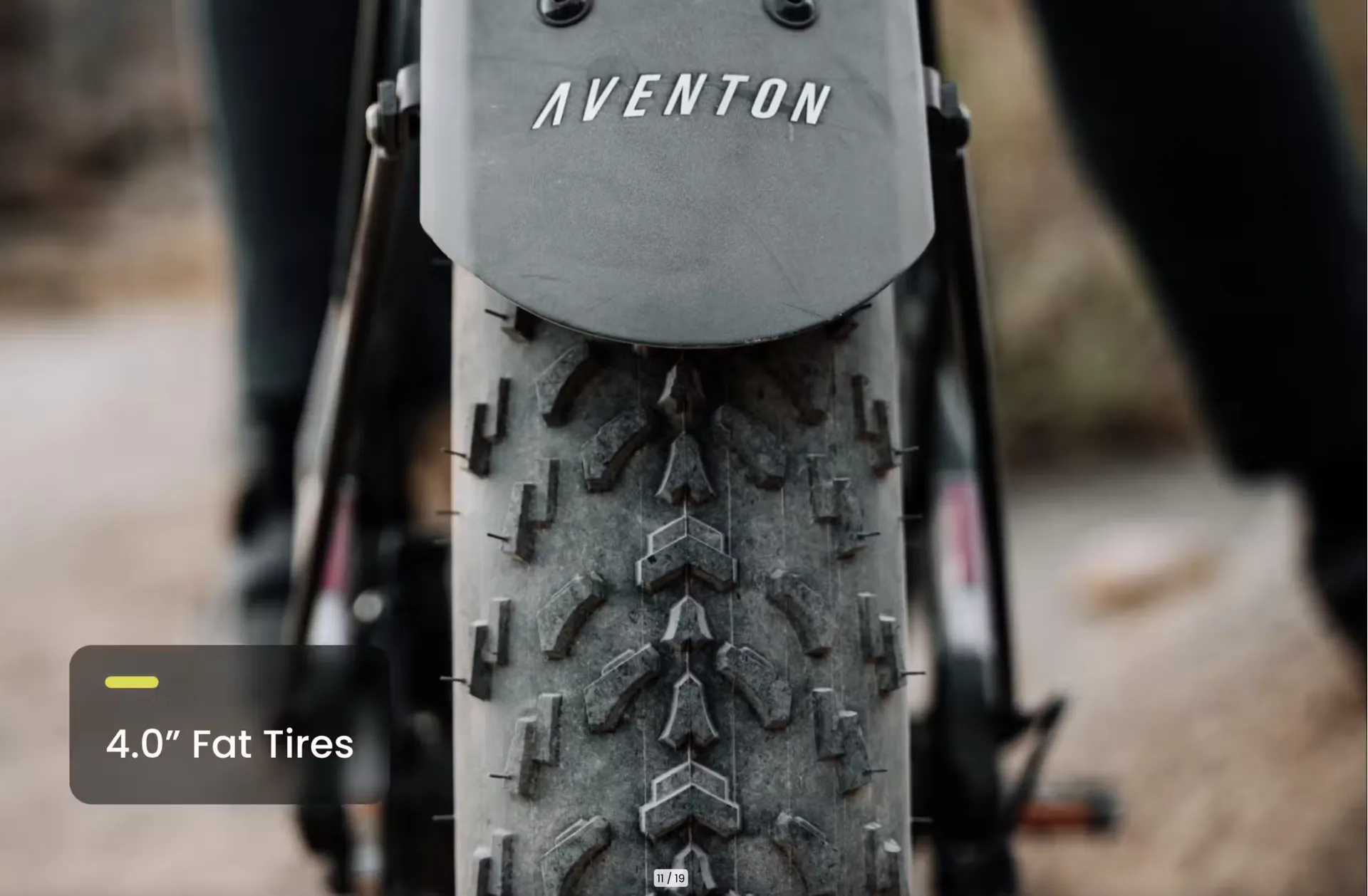

Tires: Inova 26x4.0 puncture resistant

Ebike System

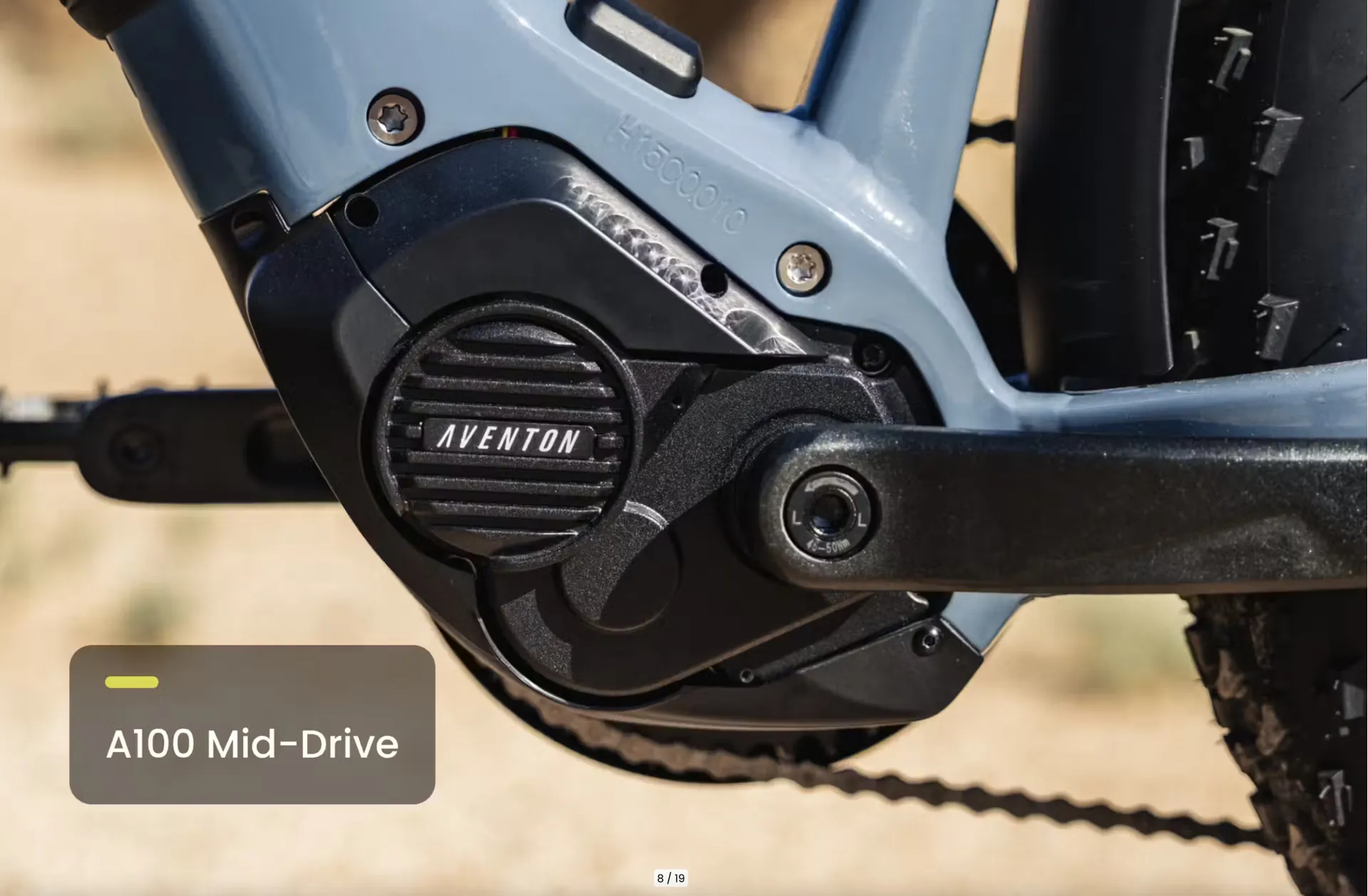

Motor: Aventon a100 mid-drive. 36v, 250W (sustained), 750W (peak), 100NM torque. IP67 rating
Motor Torque: 100Nm

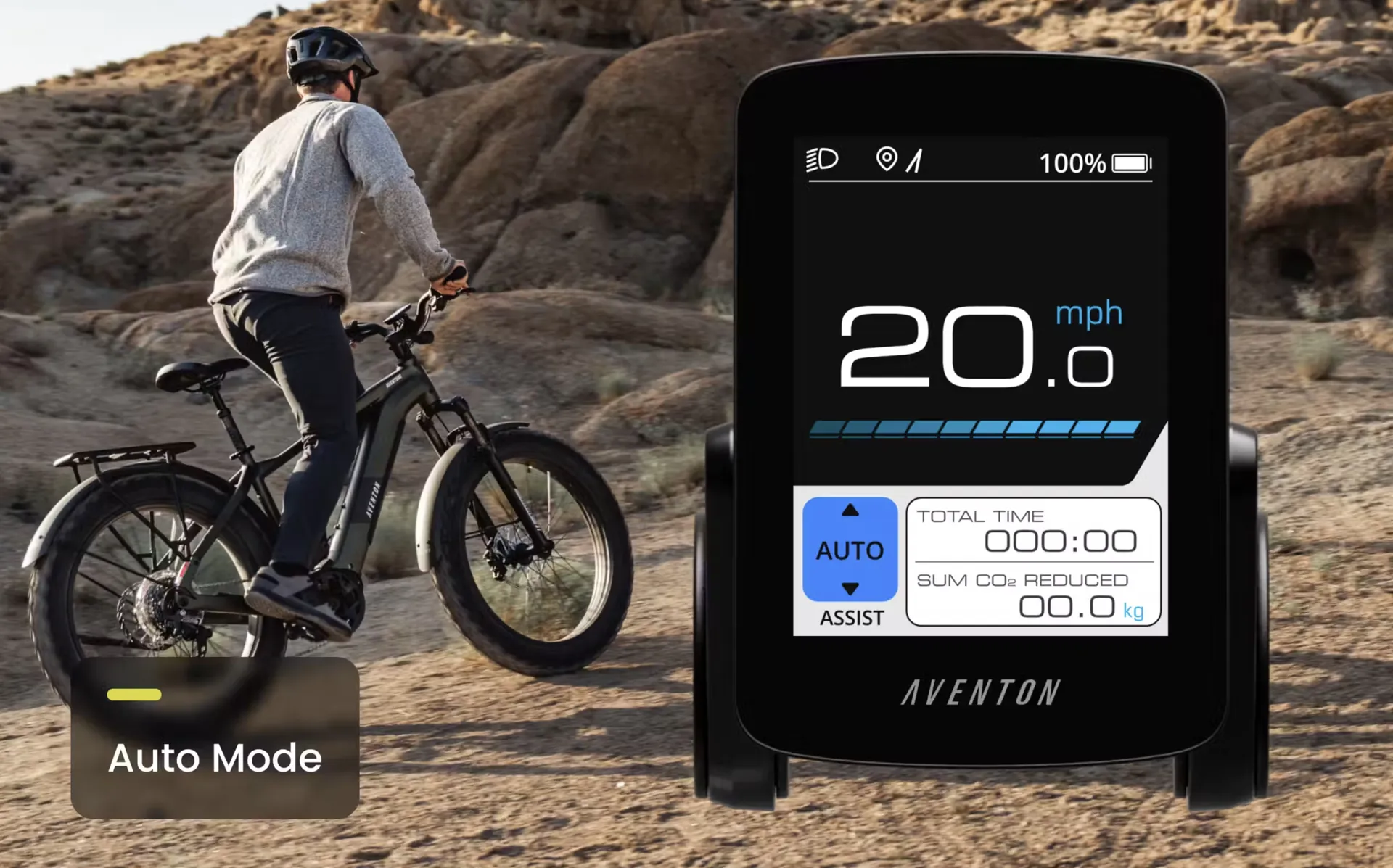

Display: Aventon BC280
Battery: Removable Internal Lithium-ion. 36V, 20Ah, 733Wh, LG 21700 cells
Battery Weight: 8.7lbs
Controller: Integrated in Motor
Throttle: Aftermarket Throttle Available for Purchase
Sensors: Double Sided Torque Sensor Integrated in Motor
Charger: 36V Output: 42V/ 4A
Charging time from 0% to 100%: 5 hours
Lights: Integrated front and rear running lights (no brake lights)

Brakes

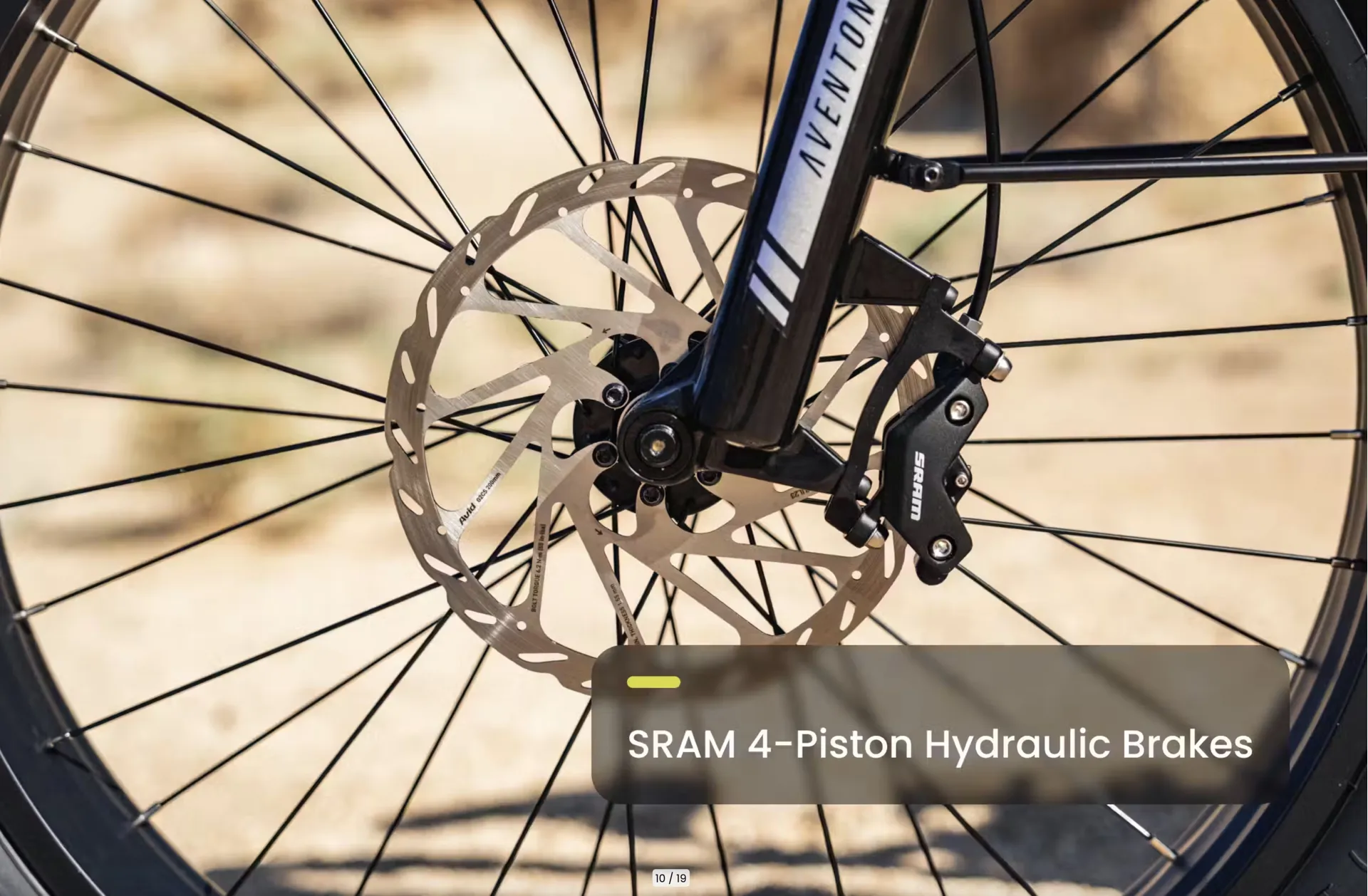

Front Brake: SRAM DB4 Hydraulic Disc Brakes w/o cutoff
Rear Brake: SRAM DB4 Hydraulic Disc Brakes w/o cutoff
Front Brake Rotor: Sram G2 200mm 6-Bolt
Rear Brake Rotor: SRAM G2 180mm 6-Bolt

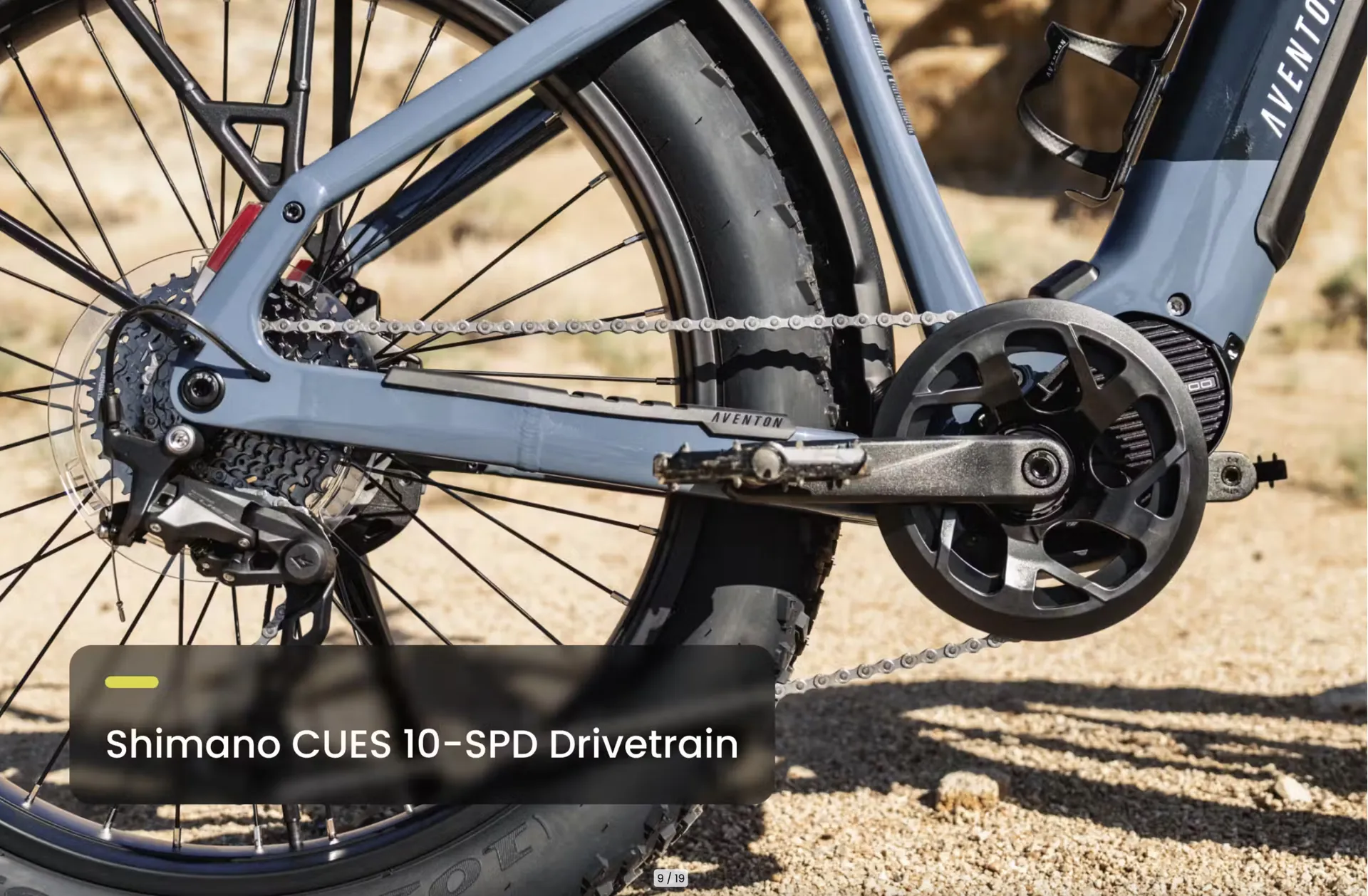

Drivetrain
Rear Derailleur: Shimano Cues 10-Speed

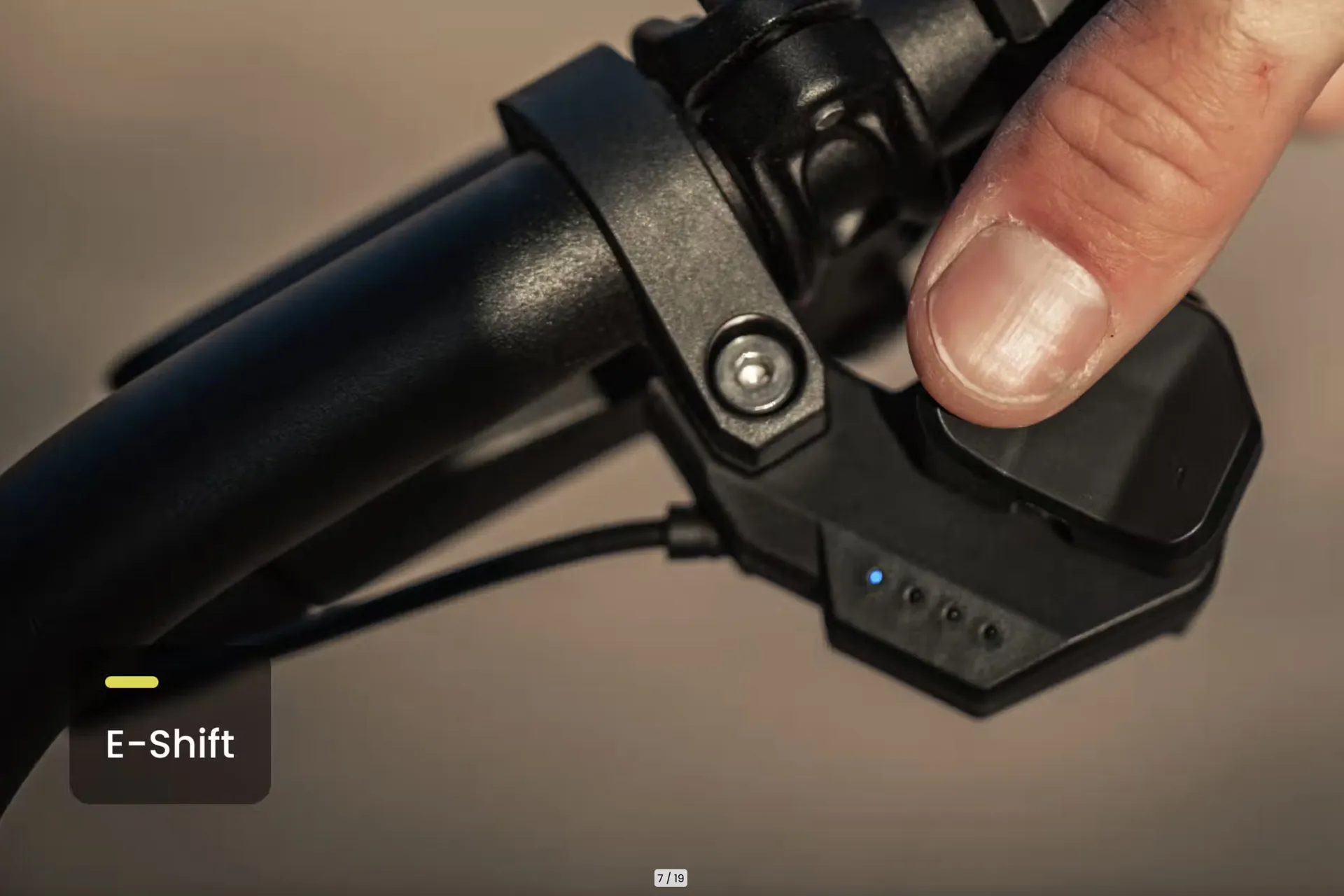

Shifter: E-Shifter
Chain: 9/10/11 Speed 124L
Cassette: Shimano Cues 10-Speed 11-39T
Chainring: 44T
Chainring BCD: N/A
Crankset: Aventon 170mm ISIS Splined
Bottom Bracket: N/A
Pedals: 9/16" Alloy Platform

Cockpit
Saddle: Aventon Saddle

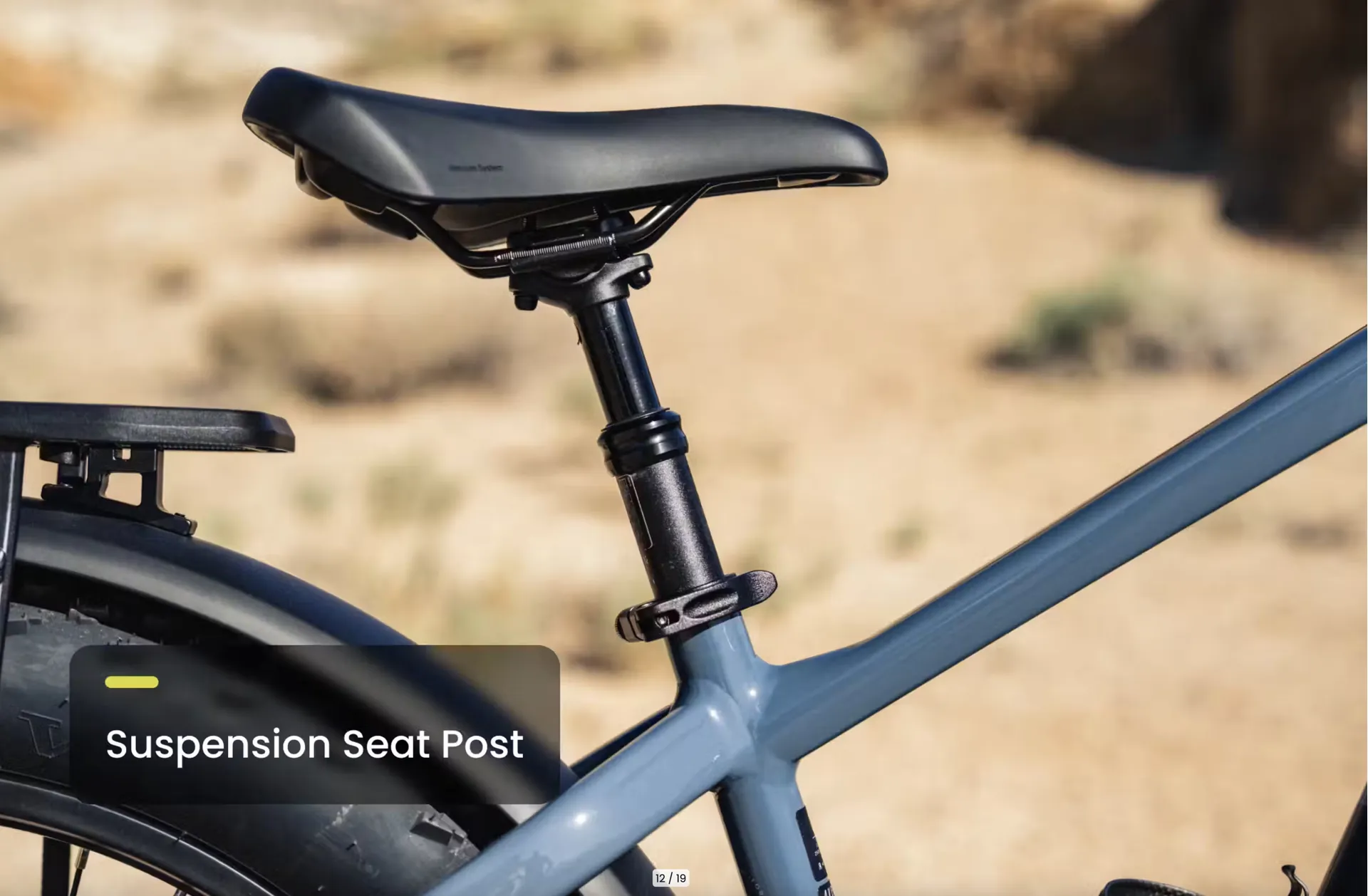

Seatpost: Aventon Suspension Seatpost, Ø 30.9mm, 350mm Length. 50mm travel
Seatpost Clamp: 34.9mm
Handlebars: Aluminum 31.8, 720mm
Grips: Aventon Lock on grips
Headset: Sealed bearing H887 Peilin 28.6mm * 56mm * 56mm H18.6mm 7pcs

Included Accessories
Kickstand: Included, rear mount
Rear Rack: Included
Fenders: Included
Technical Overview
Aventure M comes out of the box as a Class I ebike, with pedal assist. An Aventon throttle can be purchased and easily installed on Aventure M to convert to Class 2. Aventon ebikes are built to the IPX6-rated standard. An IPX6 rating means the bike is protected against high-pressure water streams from any angle. This provides strong water resistance, so you can confidently ride in heavy rain or through puddles and mud. However, IPX6 does not mean waterproof—Aventon ebikes are not designed for full submersion. Avoid using a pressure washer or sprayer to clean your ebike, as pressurized water can still damage components.
Sizing Information

Geometry

Aventure M Ebike is available in 2 sizes to suit most adults.

Frame SizeRegularLarge
A - Seat Tube Length430mm (16")480mm (18")
B - Top Tube Length Horizontal605mm (23")643mm (25")
C - Bottom Bracket Drop65mm (2")65mm (2")
D - Head Tube Length140mm (5")140mm (5")
E - Head Tube Angle67°67°
F - Seat Tube Angle72°72°
G - Rear Chainstay Length470mm (18")470mm (18")
H - Front Wheel Center693.6mm (27")731.5mm (28")
I - Wheelbase1156mm (45")1194mm (47")
J - Reach390mm (15")428mm (16")
K - Stack Height663mm (26")663mm (26")
L - Fork Length525.3mm (20")525.3mm (20")
M - Fork Offset43mm (1")43mm (1")
N - Trail102.5mm (4")102.5mm (4")
Wheel Size in Inches26" x 4.0"26" x 4.0"
Rider Height (Range)160cm - 175cm (5'3" - 5'10")175cm - 195cm (5'10" - 6'4")
